151-00161

Active

HELLERMANNTYTON

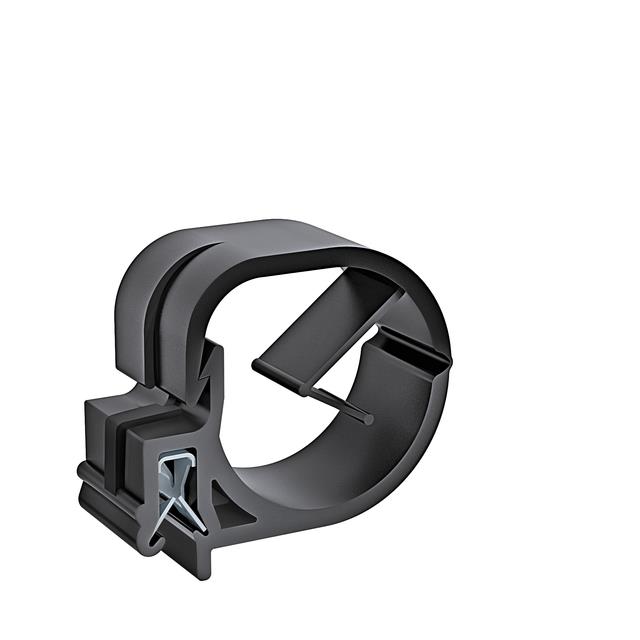

EDGE CLIP, EC27, PANEL THICKNESS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

151-00161

Active

HELLERMANNTYTON

EDGE CLIP, EC27, PANEL THICKNESS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	151-00161

Color	Black
Features	Impact Resistant, Heat Stabilized
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Edge Mount, Clip On
Opening Size [Max]	0.87 in
Opening Size [Max]	22.1 mm
Opening Size [Min]	0.59 in
Opening Size [Min]	14.99 mm
Panel Thickness [Max]	0.12 "
Panel Thickness [Max]	3.05 mm
Panel Thickness [Min]	1.02 mm
Panel Thickness [Min]	0.04 in
Type	C-Type, Clip
Type Attributes	Locking

151-00 Series

Cable Tie Mounts H-Mount for 0.625" standard bolts and Huck-Spin bolts, PA66HIRHSUV, Black,

Part	Shelf Life	Color	Mounting Type	Shelf Life Start	For Use With/Related Products	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Material	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Features	Panel Hole Size	Length	Length	Width [x]	Width [x]	Height [z]	Height [z]	Length [x]	Length [x]	Material Flammability Rating	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Max]	Panel Hole Size [Min]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Type Attributes	Panel Hole Size [Max]	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Panel Hole Size [Min]	Panel Hole Size [Max]	Type Attributes	Height	Bundle Center to Mounting Center [custom]	Bundle Center to Mounting Center [custom]	Opening Size [Min]	Opening Size [Max]	Panel Thickness [Max]
HELLERMANNTYTON 151-00433	12 Months	Black	Adhesive Heavy Bonding	Date of Manufacture	T18 - T50 Cable Ties	Quad Opening	28 mm	1.1 "	28 mm	1.1 in	4.7 mm	0.19 in	Nylon
HELLERMANNTYTON 151-00925		Black	Cupped Fir Tree			Clip Connector							Polyamide (PA66) Nylon 6/6	0.024 in	0.236 in	0.6 mm	6 mm	Heat Stabilized Impact Resistant UV Resistant	Multiple Oval Hole Sizes	29.34 mm	1.155 "	17.63 mm	0.694 "	7.14 mm	0.281 in
HELLERMANNTYTON 151-00980		Black	Arrowhead			Clip Connector							Polyamide (PA66) Nylon 6/6
HELLERMANNTYTON 151-00194		Black	Arrowhead			Clip Connector							Polyamide (PA66) Nylon 6/6	0.31 "	0.8 "	7.87 mm	20.32 mm	Heat Stabilized Impact Resistant						17.53 mm	0.69 in	0.63 in	16 mm	UL94 HB	0.28 in	11.94 mm	0.47 in	7.11 mm
HELLERMANNTYTON 151-00161		Black	Clip On Edge Mount			C-Type Clip							Polyamide (PA66) Nylon 6/6	0.04 in	0.12 "	1.02 mm	3.05 mm	Heat Stabilized Impact Resistant										UL94 HB					0.59 in	0.87 in	14.99 mm	22.1 mm	Locking
HELLERMANNTYTON 151-00077		Black	Arrowhead			Bundling Clip							Polyamide (PA66) Nylon 6/6	0.03 in	0.06 in	0.76 mm	1.52 mm			50.8 mm	2 in							UL94 V-2	0.25 in		0.276 in	6.35 mm						7 mm
HELLERMANNTYTON 151-00903		Natural	Fir Tree			Bundling Clip							Polyamide (PA66) Nylon 6/6	0.024 in	0.226 "	0.6 mm	5.75 mm	Heat Stabilized Impact Resistant UV Resistant				9.5 mm	0.374 "					UL94 HB				6.1 mm						6.9 mm	1.707 "	43.35 mm	0.24 in	0.272 in
HELLERMANNTYTON 151-00993		Black	Cupped Fir Tree			Channel Bundling							Polyamide (PA66) Nylon 6/6	0.02 "	0.23 "	0.51 mm	5.84 mm	Heat Stabilized Impact Resistant							1.031 "				0.24 in		0.27 in	6.1 mm						6.86 mm					90 °	26.19 mm
HELLERMANNTYTON 151-00932		Natural	Cupped Fir Tree			Bundling Clip							Polyamide (PA66) Nylon 6/6	0.024 in	0.266 "	0.6 mm	6.75 mm	Heat Stabilized Impact Resistant UV Resistant		50.2 mm		9.5 mm	0.374 "	7.25 mm	0.285 "	1.976 "		UL94 HB				6.5 mm						12.5 mm			0.256 in	0.492 in			0.831 in	21.1 mm
HELLERMANNTYTON 151-00174		Black	Clip On Edge Mount			Clip Wire Saddle							Polyamide (PA66) Nylon 6/6	0.039 in	0.118 in	0.99 mm		Impact Resistant										UL94 HB							15.3 mm	15.9 mm	Hinged Round										0.602 in	0.626 in	3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.66
		1000	$ 1.42
		1500	$ 1.38
		2500	$ 1.33
		5000	$ 1.26

Description

General part information

151-00 Series

Cable Tie Mounts H-Mount for 0.625" standard bolts and Huck-Spin bolts, PA66HIRHSUV, Black,

Documents

Technical documentation and resources
