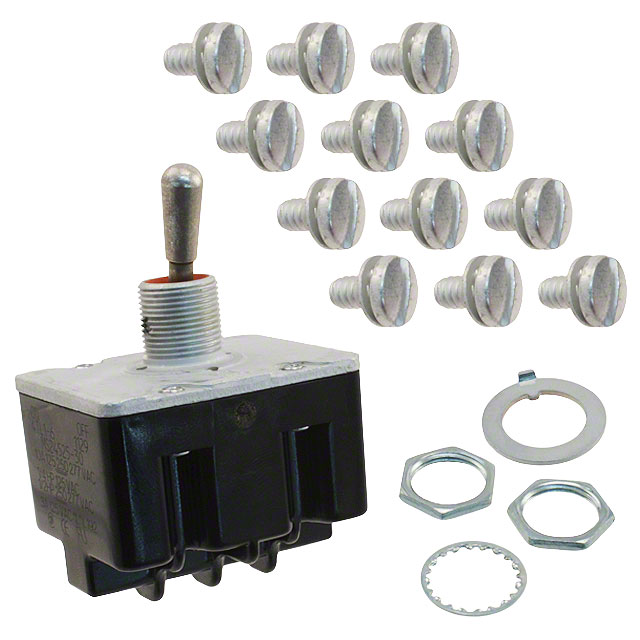

4TL1-6

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 4PST-NO 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4TL1-6

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 4PST-NO 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4TL1-6

Actuator Length [x]	17.27 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	4PST-NO
Current Rating (Amps)	10 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

4TL1 Series

Part	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - AC	Bushing Thread	Ingress Protection	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Length [x]	Illumination	Current Rating (Amps)	Actuator Type	Actuator Material
Honeywell Sensing and Productivity Solutions 4TL149-3D	12.4 mm	On-On	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PDT	22.35 mm	Non-Illuminated	15 A	Locking Lever
Honeywell Sensing and Productivity Solutions 4TL1-70	12.4 mm	Mom-On-Mom	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PDT	17.27 mm	Non-Illuminated	10 A	Standard Round	Nickel Plated
Honeywell Sensing and Productivity Solutions 4TL150-3D	12.4 mm	On-On	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PDT		Non-Illuminated	15 A	Locking Lever
Honeywell Sensing and Productivity Solutions 4TL1-10L	12.4 mm	On-On-On	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PDT	26.67 mm	Non-Illuminated	15 A	Locking Lever	Nickel Plated
Honeywell Sensing and Productivity Solutions 4TL11-550	12.4 mm	On-On-Mom	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PDT	17.27 mm	Non-Illuminated	10 A	Standard Round	Nickel Plated
Honeywell Sensing and Productivity Solutions 4TL1-6	12.4 mm	Off-Mom	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PST-NO	17.27 mm	Non-Illuminated	10 A	Standard Round	Nickel Plated
Honeywell Sensing and Productivity Solutions 4TL1-50K	12.4 mm	On-On-Mom	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PDT	26.67 mm	Non-Illuminated	10 A	Locking Lever	Nickel Plated
Honeywell Sensing and Productivity Solutions 4TL1-12M	12.4 mm	On-On-On	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PDT	26.67 mm	Non-Illuminated	15 A	Locking Lever	Nickel Plated
Honeywell Sensing and Productivity Solutions 4TL11-12	12.4 mm	On-On-On	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PDT	17.27 mm	Non-Illuminated	15 A	Standard Round	Nickel Plated
Honeywell Sensing and Productivity Solutions 4TL1-5	12.4 mm	On-Off-Mom	125 V	15/32-32	Environment Sealed	Screw Terminal	71 °C	-65 ░C	4PDT	17.27 mm	Non-Illuminated	10 A	Standard Round	Nickel Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.79
		10	$ 22.04

Description

General part information

4TL1 Series

Toggle Switch 4PST-NO Panel Mount
