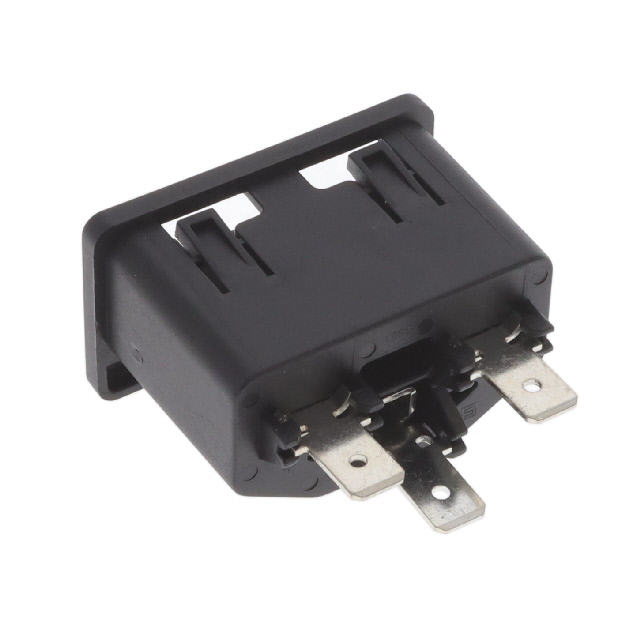

GS21-111-20-00-0000-00

Active

SCHURTER Inc.

GS21 SOCKET-OUTLET FOR 400 VDC S

Search across all available documentation for this part.

Active

SCHURTER Inc.

GS21 SOCKET-OUTLET FOR 400 VDC S

Technical Specifications

Parameters and characteristics for this part

Specification	GS21-111-20-00-0000-00

Approval Agency	UL, VDE
Connector Type	Receptacle, Female Sockets
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	22.6 mm
Panel Cutout Dimensions [y]	39.6 mm
Panel Thickness	2 mm
Panel Thickness	0.079 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Thickness [custom]	Panel Thickness [custom]	Approval Agency	Material Flammability Rating	Connector Type	Mounting Type	Termination	Termination	Termination	Panel Thickness	Panel Thickness
SCHURTER Inc. GS21-333-15-00-0000-00	39.6 mm	22.6 mm	0.059 in	1.5 mm	UL VDE	UL94 V-0	Receptacle Female Sockets	Panel Mount Snap-In	Solder
SCHURTER Inc. GS21-111-20-00-0000-00	39.6 mm	22.6 mm			UL VDE	UL94 V-0	Receptacle Female Sockets	Panel Mount Snap-In	Quick Connect	0.25 in	6.3 mm	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 3.28

General part information

Power Connector Receptacle, Female Sockets Panel Mount, Snap-In
