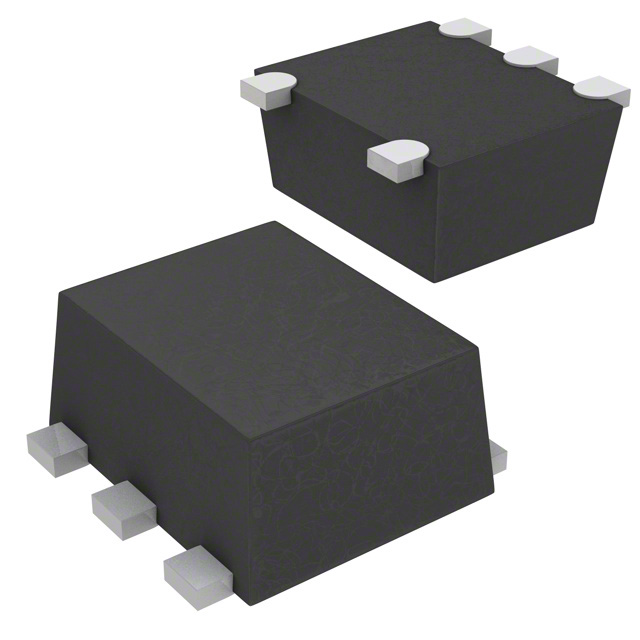

TC7SH08FS,L3F

Active

Toshiba Semiconductor and Storage

IC GATE AND 1CH 2-INP FSV

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC GATE AND 1CH 2-INP FSV

Technical Specifications

Parameters and characteristics for this part

Specification	TC7SH08FS,L3F

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Input Logic Level - High	1.5 V
Input Logic Level - Low	0.5 V
Logic Type	AND Gate
Max Propagation Delay @ V, Max CL	7.9 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	SOT-953
Supplier Device Package	fSV
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2 V

Part	Input Logic Level - Low	Max Propagation Delay @ V, Max CL	Input Logic Level - High	Supplier Device Package	Package / Case	Number of Circuits	Logic Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of Inputs	Current - Output High, Low [custom]	Current - Output High, Low [custom]
Toshiba Semiconductor and Storage TC7SH08FS,L3F	0.5 V	7.9 ns	1.5 V	fSV	SOT-953	1	AND Gate	85 °C	-40 °C	5.5 V	2 V	Surface Mount	2	8 mA	8 mA
Toshiba Semiconductor and Storage TC7SH08FU,LJ(CT	0.5 V	7.9 ns	1.5 V	5-SSOP	5-TSSOP SC-70-5 SOT-353	1	AND Gate	85 °C	-40 °C	5.5 V	2 V	Surface Mount	2	8 mA	8 mA
Toshiba Semiconductor and Storage TC7SH08FU,LJ	0.5 V	7.9 ns	1.5 V	5-SSOP	5-TSSOP SC-70-5 SOT-353	1	AND Gate	85 °C	-40 °C	5.5 V	2 V	Surface Mount	2	8 mA	8 mA
Toshiba Semiconductor and Storage TC7SH08F,LJ	0.5 V	7.9 ns	1.5 V	SMV	SC-74A SOT-753	1	AND Gate	85 °C	-40 °C	5.5 V	2 V	Surface Mount	2	8 mA	8 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AND Gate IC 1 Channel fSV
