3280-4PG-530

Active

Conxall/Switchcraft

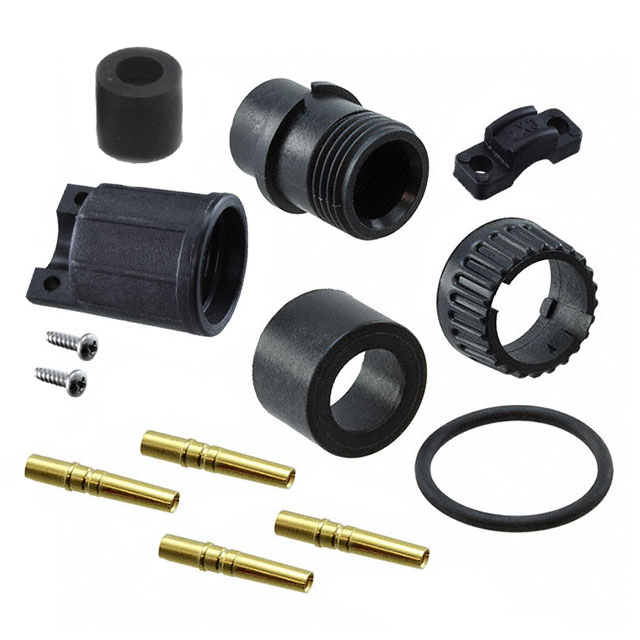

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMulti-Con-X Connectors Datasheet

3280-4PG-530

Active

Conxall/Switchcraft

CONN PLUG MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsMulti-Con-X Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3280-4PG-530

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.32 in
Cable Opening [Max] [diameter]	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm
Cable Opening [Min] [diameter]	0.3 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

3280-4P Series

Part	Contact Finish - Mating	Fastening Type	Ingress Protection	Current Rating (Amps)	Orientation	Features	Termination	Shielding	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Backshell Material, Plating	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Material	Connector Type	Mounting Type	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 3280-4PG-530	Gold	Bayonet Lock	Weathertight	5.6 A	Keyed	Backshell Cable Clamp	Crimp	Unshielded	4	-40 °C	115 °C	Plastic	Nylon Polyamide (PA)	600 V	7.62 mm	0.32 in	8.13 mm	0.3 in	Brass	Male Pins Plug	Free Hanging (In-Line)	Black
Conxall/Switchcraft 3280-4PG-524	Gold	Bayonet Lock	Weathertight	5.6 A	Keyed	Backshell Cable Clamp	Crimp	Unshielded	4	-40 °C	115 °C	Plastic	Nylon Polyamide (PA)	600 V	6.1 mm	0.27 in		0.24 in	Brass	Male Pins Plug	Free Hanging (In-Line)	Black	6.86 mm
Conxall/Switchcraft 3280-4PG-324	Gold	Bayonet Lock	Weathertight	5.6 A	Keyed	Backshell	Crimp	Unshielded	4	-40 °C	115 °C	Plastic	Nylon Polyamide (PA)	600 V	6.1 mm	0.27 in		0.24 in	Brass	Male Pins Plug	Free Hanging (In-Line)	Black	6.86 mm
Conxall/Switchcraft 3280-4PG-518	Gold	Bayonet Lock	Weathertight	5.6 A	Keyed	Backshell Cable Clamp	Crimp	Unshielded	4	-40 °C	115 °C	Plastic	Nylon Polyamide (PA)	600 V					Brass	Male Pins Plug	Free Hanging (In-Line)	Black		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3280-4PG-318	Gold	Bayonet Lock	Weathertight	5.6 A	Keyed	Backshell	Crimp	Unshielded	4	-40 °C	115 °C	Plastic	Nylon Polyamide (PA)	600 V					Brass	Male Pins Plug	Free Hanging (In-Line)	Black		4.57 mm	0.18 in	0.2 in	5.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.01

Description

General part information

3280-4P Series

4 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Multi-Con-X Connectors

Datasheet
