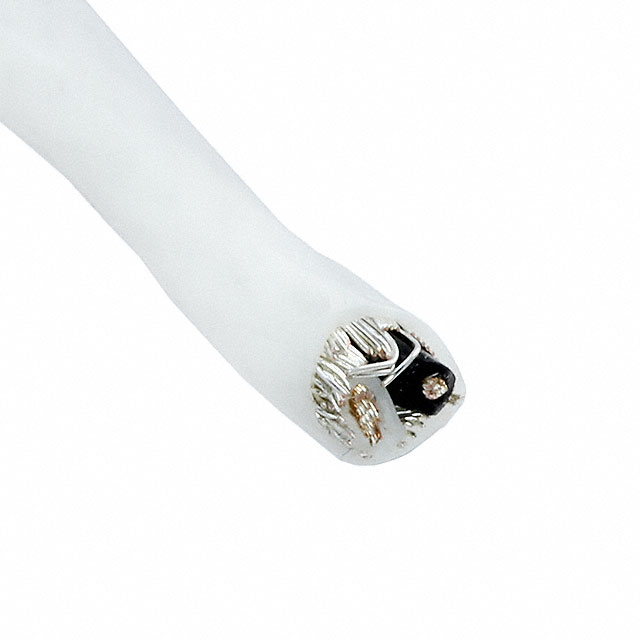

M1452 WH002

Active

ALPHA WIRE

CABLE 2CON 20AWG WHT SHLD 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2CON 20AWG WHT SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	M1452 WH002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Diameter [diameter]	0.194 in
Jacket (Insulation) Diameter [diameter]	4.93 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	600 V
Wire Gauge	20 AWG

Part	Shield Material	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Shield Type	Wire Gauge	Jacket (Insulation) Material	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Shield Coverage
ALPHA WIRE M1452 WH002	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.194 in	4.93 mm	19	32 AWG	500 '	152.4 m	Braid	20 AWG	Poly-Vinyl Chloride (PVC)	2	0.02 in	0.508 mm	Multi-Conductor	Copper Tinned	105 ░C	-55 °C	600 V	90 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Conductor Multi-Conductor Cable White 20 AWG Braid 500.0' (152.4m)
