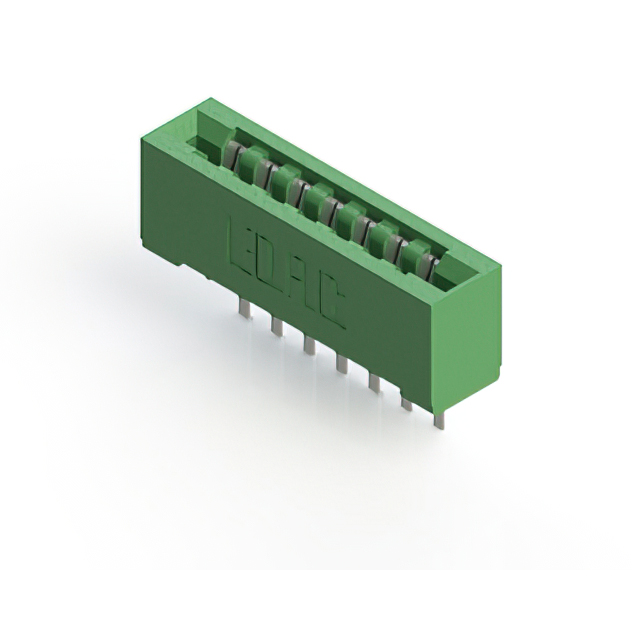

307-007-447-101

Active

EDAC Inc.

CONN EDGE SGL FML 7POS 0.156 TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

307-007-447-101

Active

EDAC Inc.

CONN EDGE SGL FML 7POS 0.156 TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-007-447-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	7
Number of Positions/Bay/Row [custom]	7
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

307-007 Series

...

Part	Features	Termination	Flange Feature	Contact Finish	Card Type	Contact Type	Color	Material - Insulation	Termination Rows	Gender	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Rows	Read Out	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-007-501-178	Card Guides	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Gold	Non Specified - Dual Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	14	10 Áin	0.25 Ám	Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	2	Dual
EDAC Inc. 307-007-445-168	Card Guides	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Tin	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-445-108		Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Tin	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-401-108		Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Tin	Non Specified - Dual Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	14			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	2	Dual
EDAC Inc. 307-007-447-101		Wire Wrap		Tin	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-401-158	Card Guides	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Tin	Non Specified - Dual Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	14			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	2	Dual
EDAC Inc. 307-007-559-107		Solder	Flush Mount M3 Threaded Insert Top Opening	Gold	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7	10 Áin	0.25 Ám	Copper Alloy	Through Hole Right Angle	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-553-103		Solder	Floating Bobbin Flush Mount	Gold	Non Specified - Dual Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	14	10 Áin	0.25 Ám	Copper Alloy	Through Hole Right Angle	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	2	Dual	0.116 in	2.95 mm
EDAC Inc. 307-007-459-107		Solder	Flush Mount M3 Threaded Insert Top Opening	Tin	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7			Copper Alloy	Through Hole Right Angle	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-505-104		Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	Gold	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7	10 Áin	0.25 Ám	Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.02

Description

General part information

307-007 Series

7 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
