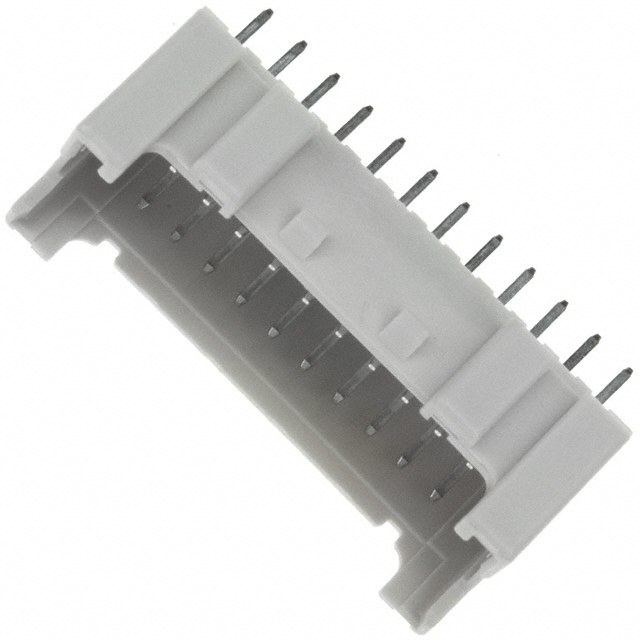

B24B-PNDZS-1

Active

JST Sales America Inc.

CONN HEADER VERT 24POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 24POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B24B-PNDZS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Ivory
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	5 mm
Row Spacing - Mating	0.197 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Fastening Type	Insulation Color	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Features	Connector Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post [x]	Contact Type	Number of Positions	Mated Stacking Heights	Insulation Material	Contact Material	Contact Shape	Number of Positions Loaded	Shrouding	Style	Voltage Rating	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Termination
JST Sales America Inc. B24B-PNDZS-1	Locking Ramp	Ivory	2	0.079 in	2 mm	3 A	5 mm	0.197 in	Through Hole	Board Guide	Header	UL94 V-0	3.2 mm	0.126 in	Male Pin	24	12.9 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Copper Alloy	Square	All	Shrouded - 4 Wall	Board to Cable/Wire	250 VDC	9.91 mm	0.39 in	-25 °C	85 °C	Tin	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 24 position 0.079" (2.00mm)
