700139FX

Active

LAPP

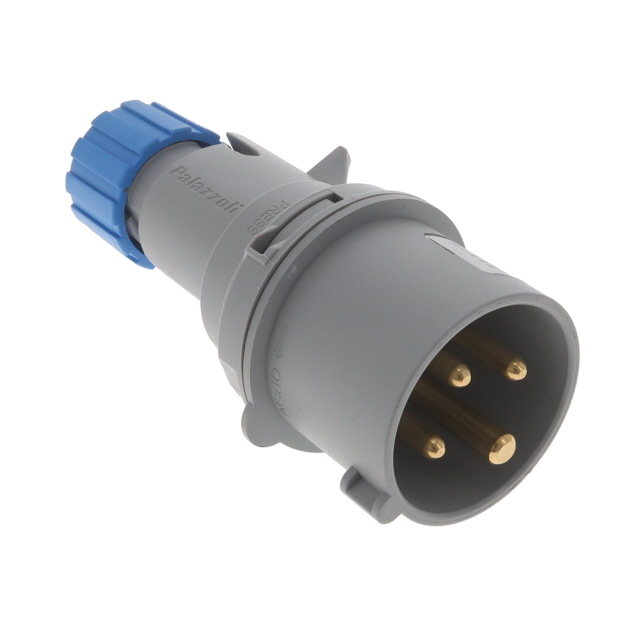

MULTIMAX MALE PLUG 3+PE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LAPP

MULTIMAX MALE PLUG 3+PE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	700139FX

Approval Agency	cULus
Connector Type	Plug, Male Pins
Current Rating (Amps)	20 A
Features	Cable Clamp, Strain Relief
Ingress Protection	IP44
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Termination	Screw
Voltage Rating	3 Phase
Voltage Rating	250 VAC

Part	Termination	Approval Agency	Number of Positions	Current Rating (Amps)	Voltage Rating	Voltage Rating	Features	Ingress Protection	Connector Type	Mounting Type	Material Flammability Rating
LAPP 700139FX	Screw	cULus	4	20 A	3 Phase	250 VAC	Cable Clamp Strain Relief	IP44	Male Pins Plug	Free Hanging (In-Line)	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Plug, Male Pins Free Hanging (In-Line)
