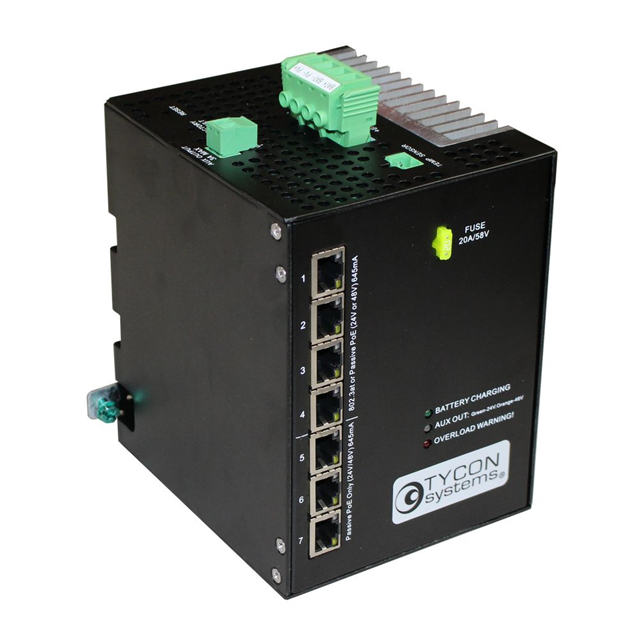

TPDIN-SC48-20
ActiveTycon Systems Inc.
BATT CHARGER SOLAR 48V 20A
Deep-Dive with AI
Search across all available documentation for this part.
TPDIN-SC48-20
ActiveTycon Systems Inc.
BATT CHARGER SOLAR 48V 20A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPDIN-SC48-20 |
|---|---|
| Approval Agency | FCC, CE, UL |
| Battery Cell Size | 48 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 20 A |
| Mounting Type | DIN Rail |
| Number of Cells [custom] | 7 |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Max [Max] | 200 W |
| Size / Dimension [x] | 149.86 mm |
| Size / Dimension [x] | 5.9 in |
| Size / Dimension [y] | 111.76 mm |
| Size / Dimension [y] | 4.4 " |
| Size / Dimension [z] | 5.4 in |
| Size / Dimension [z] | 137.16 mm |
| Termination Style | Terminal Block |
| Type | Solar Charger |
| Voltage - Input [Max] | 100 V |
| Voltage - Input [Min] | 56 V |
| Voltage - Nominal | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 756.80 | |
| 5 | $ 743.75 | |||
| 10 | $ 730.70 | |||
Description
General part information
TPDIN Series
Solar Charger Battery Charger 48V 20A 48V
