A08ZR08ZR28H203A

Active

JST Sales America Inc.

JUMPER 08ZR-8M-P - 08ZR-8M-P 8"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 08ZR-8M-P - 08ZR-8M-P 8"

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Contact Finish	Length	Length	Length	Number of Positions	Number of Rows	Color	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]	Length
JST Sales America Inc. A08ZR08ZR28H203A	IDC	Tin	0.667 ft	8 in	203.2 mm	8	1	Gray Individual	Socket to Socket Reversed	0.059 "	1.5 mm
JST Sales America Inc. A08ZR08ZR28H102A	IDC	Tin				8	1	Gray Individual	Socket to Socket Reversed	0.059 "	1.5 mm	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A08ZR08ZR28H102B	IDC	Tin				8	1	Gray Individual	Socket to Socket	0.059 "	1.5 mm	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A08ZR08ZR28H305A	IDC	Tin	1 ft		304.8 mm	8	1	Gray Individual	Socket to Socket Reversed	0.059 "	1.5 mm
JST Sales America Inc. A08ZR08ZR28H51B	IDC	Tin	0.167 '	2 "	50.8 mm	8	1	Gray Individual	Socket to Socket	0.059 "	1.5 mm
JST Sales America Inc. A08ZR08ZR28H152A	IDC	Tin		6 "	152.4 mm	8	1	Gray Individual	Socket to Socket Reversed	0.059 "	1.5 mm				0.5 '
JST Sales America Inc. A08ZR08ZR28H254A	IDC	Tin	0.833 ft	10 in	254 mm	8	1	Gray Individual	Socket to Socket Reversed	0.059 "	1.5 mm
JST Sales America Inc. A08ZR08ZR28H305B	IDC	Tin	1 ft		304.8 mm	8	1	Gray Individual	Socket to Socket	0.059 "	1.5 mm
JST Sales America Inc. A08ZR08ZR28H254B	IDC	Tin	0.833 ft	10 in	254 mm	8	1	Gray Individual	Socket to Socket	0.059 "	1.5 mm
JST Sales America Inc. A08ZR08ZR28H203B	IDC	Tin	0.667 ft	8 in	203.2 mm	8	1	Gray Individual	Socket to Socket	0.059 "	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.38

General part information

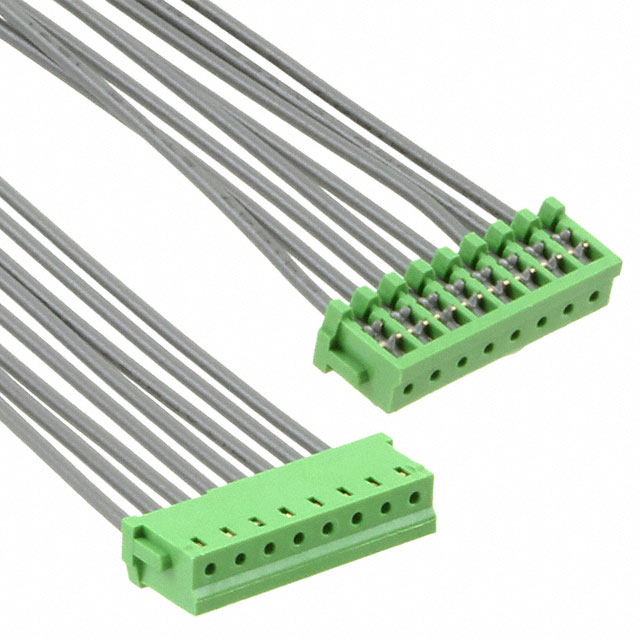

8 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.667' (203.20mm, 8.00")
