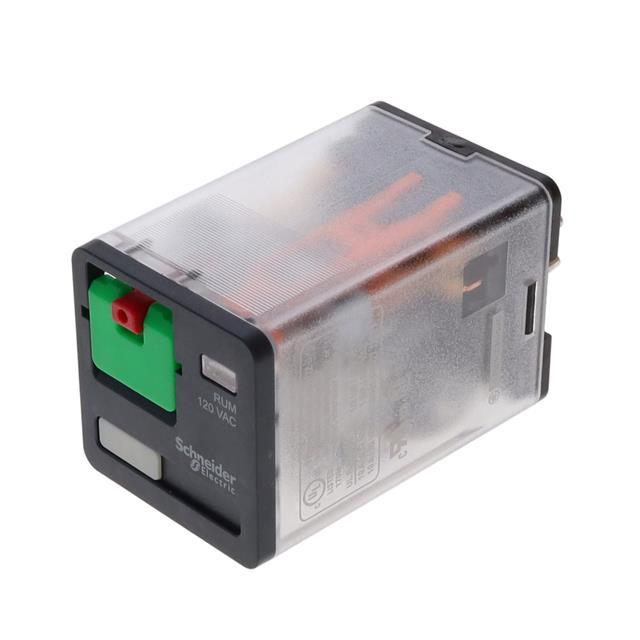

RUMC21F7

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO CYL PINS 10A@250V 120V

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO CYL PINS 10A@250V 120V

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Coil Voltage	Contact Form	Mounting Type	Approval Agency	Contact Rating (Current)	Load - Max Switching	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Coil Current	Switching Voltage	Coil Type	Contact Material	Features	Must Release Voltage	Release Time	Operate Time	Termination Style
SQUARE D BY SCHNEIDER ELECTRIC RUMC21F7	General Purpose	120 VAC	DPDT (2 Form C)	Chassis Mount	CSA EAC UL	10 A	280 W 2500 VA	96 VAC	-40 °C	55 °C	1.7 kOhms	70.6 mA	28 VDC 250 VAC	Non Latching	Silver Nickel (AgNi)	Test Button	18 VAC	20 ms	20 ms	Plug In
SQUARE D BY SCHNEIDER ELECTRIC RUMC21P7	General Purpose	230 VAC	DPDT (2 Form C)	Socketable	CSA EAC UL	10 A	280 W 2500 VA	184 VAC	-40 °C	55 °C	6.8 kOhms	33.8 mA	28 VDC 250 VAC	Non Latching	Silver Nickel (AgNi)	Lighted Indicator	34.5 VAC	20 ms	20 ms	Plug In
SQUARE D BY SCHNEIDER ELECTRIC RUMC21JD	General Purpose	12 VDC	DPDT (2 Form C)	Socketable	CSA EAC UL	10 A	280 W 2500 VA	9.6 VDC	-40 °C	55 °C	120 Ohms	100 mA	28 VDC 250 VAC	Non Latching	Silver Nickel (AgNi)	Test Button	1.2 VDC	20 ms	20 ms	Plug In
SQUARE D BY SCHNEIDER ELECTRIC RUMC21BD	General Purpose	24 VDC	DPDT (2 Form C)	Socketable	CSA EAC UL	10 A	280 W 2500 VA	19.2 VDC	-40 °C	55 °C	470 Ohms	51.1 mA	28 VDC 250 VAC	Non Latching	Silver Nickel (AgNi)	Test Button	2.4 VDC	20 ms	20 ms	Plug In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
