0191310018

Active

Molex

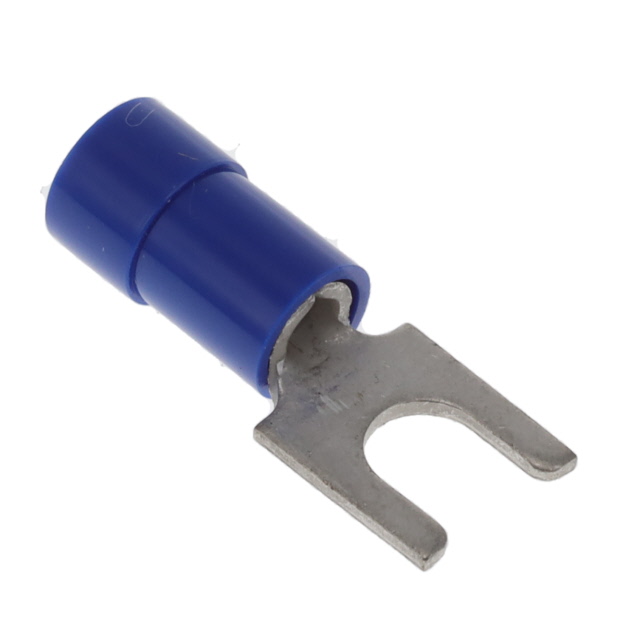

CONN SPADE TERM 14-16AWG #8 BLU

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec

0191310018

Active

Molex

CONN SPADE TERM 14-16AWG #8 BLU

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191310018

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	0.175 in
Insulation Diameter [diameter]	4.45 mm
Length - Overall	19.84 mm
Length - Overall	0.781 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	0.173 in
Tongue Inside Opening [x]	4.39 mm
Width - Outer Edges [x]	0.295 in
Width - Outer Edges [x]	7.49 mm

019131 Series

Part	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Material - Insulation	Stud/Tab Size	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Terminal Type	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall	Length - Overall	Color	Contact Finish	Mounting Type	Contact Material	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Insulation Diameter	Wire Gauge [Max]	Wire Gauge [Min]	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Insulation Diameter	Length - Overall [x]
Molex 0191310018	0.173 in	4.39 mm	Poly-Vinyl Chloride (PVC)	8 Stud	Insulated	0.295 in	7.49 mm	Crimp	Standard	0.175 in	4.45 mm	19.84 mm	0.781 in	Blue	Electro-Tin	Free Hanging (In-Line)	Copper
Molex 0191310012	0.198 in	5.03 mm	Poly-Vinyl Chloride (PVC)		Insulated	0.295 in	7.49 mm	Crimp	Standard	0.175 in	4.45 mm	19.84 mm	0.781 in	Blue	Electro-Tin	Free Hanging (In-Line)	Copper	10 Stud
Molex 0191310044	0.119 in	3.02 mm	Poly-Vinyl Chloride (PVC)		Insulated	0.187 in	4.75 mm	Crimp	Standard	0.145 "				Red	Electro-Tin	Free Hanging (In-Line)	Copper	4 Stud	18.47 mm	0.727 in	3.68 mm	22 AWG	17.5 AWG	4.65 mm	0.183 in
Molex 0191310041	0.146 in	3.71 mm	Poly-Vinyl Chloride (PVC)		Insulated			Crimp	Standard	0.145 "				Red	Electro-Tin	Free Hanging (In-Line)	Copper	6 Stud	22.73 mm	0.895 in	3.68 mm	22 AWG	17.5 AWG			0.25 "	6.35 mm	8.13 mm	0.32 in
Molex 0191310020	0.146 in	3.71 mm	Poly-Vinyl Chloride (PVC)		Insulated	0.295 in	7.49 mm	Crimp	Standard	0.175 in	4.45 mm	19.84 mm	0.781 in	Blue	Electro-Tin	Free Hanging (In-Line)	Copper	6 Stud
Molex 0191310004	0.173 in	4.39 mm	Poly-Vinyl Chloride (PVC)	8 Stud	Insulated			Crimp	Standard					Yellow	Electro-Tin	Free Hanging (In-Line)	Copper		27.31 mm	1.075 in	6.35 mm	12 AWG	10 AWG			0.32 in	8.13 mm	7.75 mm	0.305 "	13.97 mm	0.55 in	0.25 "
Molex 0191310016	0.173 in	4.39 mm	Poly-Vinyl Chloride (PVC)	8 Stud	Insulated	0.295 in	7.49 mm	Crimp	Standard	0.175 in	4.45 mm	19.84 mm	0.781 in	Blue	Electro-Tin	Free Hanging (In-Line)	Copper
Molex 0191310003	0.173 in	4.39 mm	Poly-Vinyl Chloride (PVC)	8 Stud	Insulated			Crimp	Standard					Yellow	Electro-Tin	Free Hanging (In-Line)	Copper		27.31 mm	1.075 in	6.35 mm	12 AWG	10 AWG			0.32 in	8.13 mm	7.75 mm	0.305 "	13.97 mm	0.55 in	0.25 "
Molex 0191310035	0.173 in	4.39 mm	Poly-Vinyl Chloride (PVC)	8 Stud	Insulated	0.291 in	7.39 mm	Crimp	Standard	0.145 "				Red	Electro-Tin	Free Hanging (In-Line)	Copper		0.785 in		3.68 mm	22 AWG	17.5 AWG	5.26 mm					0.207 in				19.94 mm
Molex 0191310002	0.198 in	5.03 mm	Poly-Vinyl Chloride (PVC)		Insulated			Crimp	Standard					Yellow	Electro-Tin	Free Hanging (In-Line)	Copper	10 Stud	27.31 mm	1.075 in	6.35 mm	12 AWG	10 AWG			0.32 in	8.13 mm	7.75 mm	0.305 "	13.97 mm	0.55 in	0.25 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.33
		10	$ 0.26
		100	$ 0.19
		1000	$ 0.15
		3000	$ 0.14

Description

General part information

019131 Series

Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet

Insulkrimp Rings, Spades Prod Spec

Datasheet
