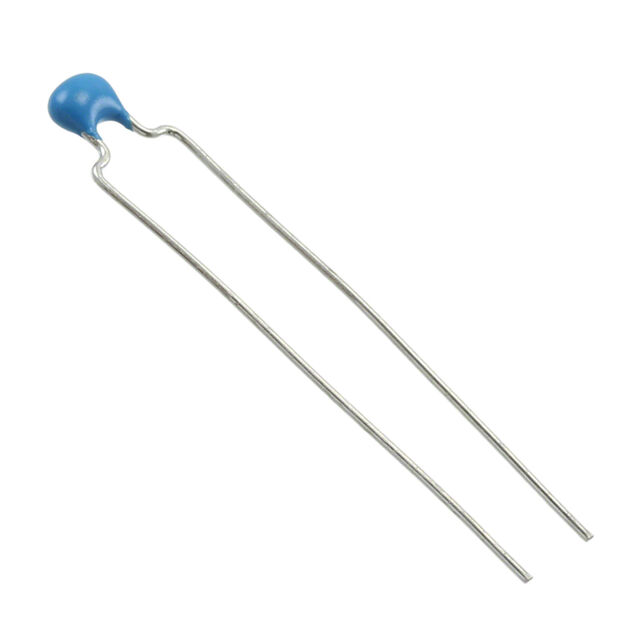

RDE5C1H822J1K1H03B
ActiveMurata Power Solutions Inc.
CAP CER 8200PF 50V NP0 RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
RDE5C1H822J1K1H03B
ActiveMurata Power Solutions Inc.
CAP CER 8200PF 50V NP0 RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RDE5C1H822J1K1H03B |
|---|---|
| Applications | General Purpose |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [y] | 0.124 " |
| Size / Dimension [y] | 3.15 mm |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 50 VDC |
RDE5C1H Series
...
| Part | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Applications | Lead Style | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Temperature Coefficient | Mounting Type | Voltage - Rated | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Lead Spacing | Lead Spacing | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | 5 % | 0.197 in | 0.098 in | 5 mm | 2.5 mm | General Purpose | Formed Leads | Radial | 0.236 in | 6 mm | C0G NP0 | Through Hole | 50 VDC | 12 pF | -55 °C | 125 °C | 0.098 in | 2.5 mm | ||
Murata Power Solutions Inc. | ||||||||||||||||||||
Murata Power Solutions Inc. | 5 % | 0.197 in | 0.098 in | 5 mm | 2.5 mm | General Purpose | Radial | 0.236 in | 6 mm | C0G NP0 | Through Hole | 50 VDC | 560 pF | -55 °C | 125 °C | 0.098 in | 2.5 mm | |||
Murata Power Solutions Inc. | 5 % | 0.157 " | 0.098 in | 4 mm | 2.5 mm | General Purpose | Formed Leads | Radial | 0.236 in | 6 mm | C0G NP0 | Through Hole | 50 VDC | 22 pF | -55 °C | 125 °C | 0.197 in | 5 mm | ||
Murata Power Solutions Inc. | 5 % | 0.177 in | 0.124 " | 4.5 mm | 3.15 mm | General Purpose | Radial | C0G NP0 | Through Hole | 50 VDC | 0.018 µF | -55 °C | 125 °C | 0.197 in | 5 mm | 0.197 in | 5 mm | |||
Murata Power Solutions Inc. | 5 % | 0.157 " | 0.098 in | 4 mm | 2.5 mm | General Purpose | Formed Leads | Radial | 0.236 in | 6 mm | C0G NP0 | Through Hole | 50 VDC | 100 pF | -55 °C | 125 °C | 0.197 in | 5 mm | ||
Murata Power Solutions Inc. | 5 % | 0.197 in | 0.098 in | 5 mm | 2.5 mm | General Purpose | Formed Leads | Radial | 0.236 in | 6 mm | C0G NP0 | Through Hole | 50 VDC | 150 pF | -55 °C | 125 °C | 0.098 in | 2.5 mm | ||
Murata Power Solutions Inc. | 0.25 pF | 0.157 " | 0.098 in | 4 mm | 2.5 mm | General Purpose | Formed Leads | Radial | 0.236 in | 6 mm | C0G NP0 | Through Hole | 50 VDC | 2 pF | -55 °C | 125 °C | 0.197 in | 5 mm | ||
Murata Power Solutions Inc. | 5 % | 0.157 " | 0.098 in | 4 mm | 2.5 mm | General Purpose | Formed Leads | Radial | 0.236 in | 6 mm | C0G NP0 | Through Hole | 50 VDC | 470 pF | -55 °C | 125 °C | 0.197 in | 5 mm | ||
Murata Power Solutions Inc. | 5 % | 0.177 in | 0.124 " | 4.5 mm | 3.15 mm | General Purpose | Radial | C0G NP0 | Through Hole | 50 VDC | -55 °C | 125 °C | 0.197 in | 5 mm | 0.197 in | 5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.64 | |
| 10 | $ 0.45 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.20 | |||
| 5000 | $ 0.19 | |||
Description
General part information
RDE5C1H Series
8200 pF ±5% 50V Ceramic Capacitor C0G, NP0 Radial
