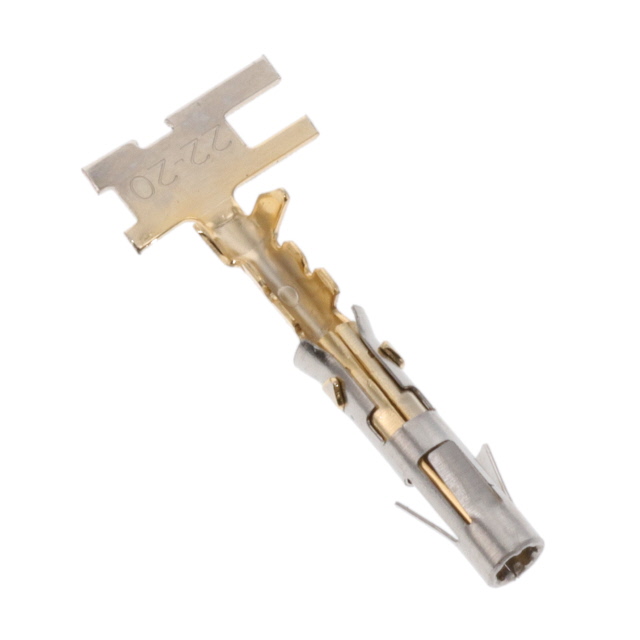

SS20M2F

Active

Amphenol Sine Systems Corp

CONTACT SOCKET 20-22AWG SZ16

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet

SS20M2F

Active

Amphenol Sine Systems Corp

CONTACT SOCKET 20-22AWG SZ16

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS20M2F

Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Size	16
Contact Termination	Crimp
Contact Type	Socket
Features	Insulation Support
Type	Stamped, Signal
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	20 AWG
Wire Gauge or Range - mm˛ [Max]	0.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.34 mm˛

SS20 Series

Part	Contact Termination	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Termination Finish	Contact Size	Contact Finish Thickness	Contact Type	Features	Type	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
Amphenol Sine Systems Corp SS20W1F	Crimp	20 AWG	22 AWG	0.5 mm²	0.34 mm²	Copper Alloy	20	Flash	Socket	Insulation Support	Signal Stamped	Copper Alloy	Gold
Amphenol Sine Systems Corp SS20M2G30	Crimp	20 AWG	22 AWG	0.5 mm²	0.34 mm²		16		Socket	Insulation Support	Signal Stamped	Copper Alloy	Gold	0.76 Ám	30 Áin
Amphenol Sine Systems Corp SS20W2G5	Crimp	20 AWG	22 AWG	0.5 mm²	0.34 mm²		20		Socket	Insulation Support	Signal Stamped	Copper Alloy	Gold	0.127 µm	5 µin
Amphenol Sine Systems Corp SS20M2F	Crimp	20 AWG	22 AWG				16	Flash	Socket	Insulation Support	Signal Stamped	Copper Alloy	Gold			0.5 mm˛	0.34 mm˛
Amphenol Sine Systems Corp SS20M1G15	Crimp	20 AWG	22 AWG	0.5 mm²	0.34 mm²		16		Socket	Insulation Support	Signal Stamped	Copper Alloy	Gold	0.38 µm	15 µin
Amphenol Sine Systems Corp SS20W1T	Crimp	20 AWG	22 AWG	0.5 mm²	0.34 mm²		20		Socket	Insulation Support	Signal Stamped	Copper Alloy	Tin
Amphenol Sine Systems Corp SS20M2T	Crimp	20 AWG	22 AWG	0.5 mm²	0.34 mm²		16		Socket	Insulation Support	Signal Stamped	Copper Alloy	Tin
Amphenol Sine Systems Corp SS20W1G30	Crimp	20 AWG	22 AWG	0.5 mm²	0.34 mm²		20		Socket	Insulation Support	Signal Stamped	Copper Alloy	Gold	0.76 Ám	30 Áin
Amphenol Sine Systems Corp SS20M1G30	Crimp	20 AWG	22 AWG	0.5 mm²	0.34 mm²		16		Socket	Insulation Support	Signal Stamped	Copper Alloy	Gold	0.76 Ám	30 Áin
Amphenol Sine Systems Corp SS20W2G15	Crimp	20 AWG	22 AWG	0.5 mm²	0.34 mm²		20		Socket	Insulation Support	Signal Stamped	Copper Alloy	Gold	0.38 µm	15 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.74
		10	$ 0.65
		25	$ 0.59
		50	$ 0.56
		100	$ 0.53
		250	$ 0.49
		500	$ 0.46
		1000	$ 0.38
	Tape & Reel (TR)	3000	$ 0.35
		6000	$ 0.34
		9000	$ 0.31
		15000	$ 0.31
		30000	$ 0.30

Description

General part information

SS20 Series

Socket Contact 20-22 AWG Size 16 Crimp Gold

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet
