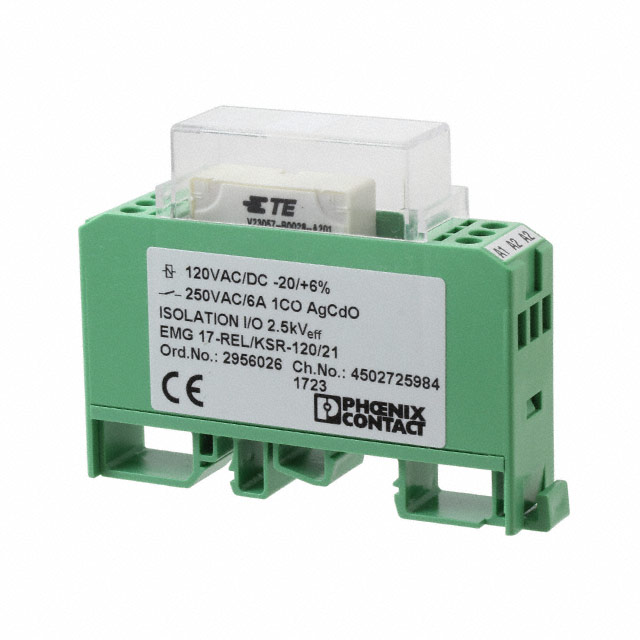

2956026
ObsoletePhoenix Contact
RELAY GEN PURPOSE SPDT 120V
Deep-Dive with AI
Search across all available documentation for this part.
2956026
ObsoletePhoenix Contact
RELAY GEN PURPOSE SPDT 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2956026 |
|---|---|
| Approval Agency | UL, EAC, cULus |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Socket Included |
| Load - Max Switching | 95 W, 1500 VA |
| Mounting Type | DIN Rail |
| Operate Time | 6 ms |
| Relay Type | General Purpose |
| Release Time | 11 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
29560 Series
General Purpose Relay SPDT (1 Form C) 120VAC/DC Coil DIN Rail
