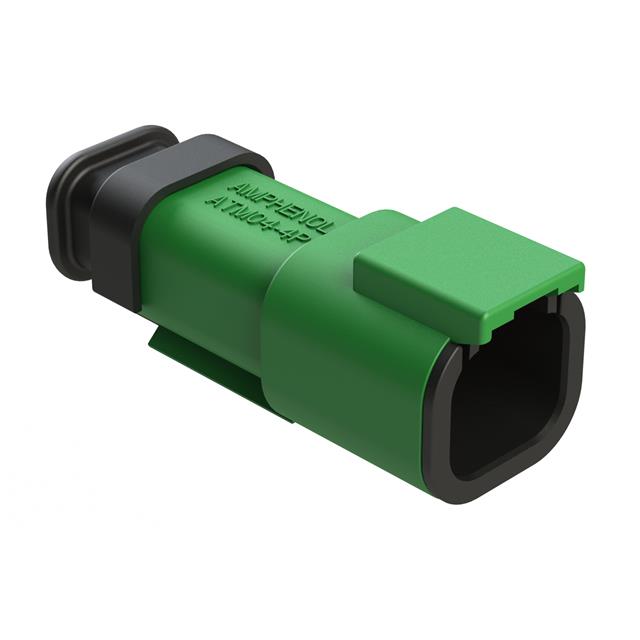

ATM04-4P-SR01GN

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 4POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsATM Series SR01 Datasheet +1

ATM04-4P-SR01GN

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 4POS

Deep-Dive with AI

DocumentsATM Series SR01 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATM04-4P-SR01GN

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Cap (Cover), Sealed, Strain Relief, IP67
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

ATM04 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Insulation Material	Color	Connector Type	Note	Features	Mounting Type	Number of Rows	Contact Type	Number of Positions	Fastening Type
Amphenol Sine Systems Corp ATM04-08PD	-55 °C	125 °C	Crimp	Thermoplastic	Brown	Receptacle	Contacts Not Included	Sealed	Free Hanging (In-Line)	2	Male Pin	8	Latch Holder
Amphenol Sine Systems Corp ATM04-6P-SR01BN	-55 °C	125 °C	Crimp	Thermoplastic	Brown	Receptacle		Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	3	Male Pin	6	Latch Holder
Amphenol Sine Systems Corp ATM04-4P-SR01GN	-55 °C	125 °C	Crimp	Thermoplastic	Green	Receptacle		Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	2	Male Pin	4	Latch Holder
Amphenol Sine Systems Corp ATM04-4P-SR01BK	-55 °C	125 °C	Crimp	Thermoplastic	Black	Receptacle		Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	2	Male Pin	4	Latch Holder
Amphenol Sine Systems Corp ATM04-6P-SR01BL	-55 °C	125 °C	Crimp	Thermoplastic	Blue	Receptacle		Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	3	Male Pin	6	Latch Holder
Amphenol Sine Systems Corp ATM04-2P-SR01BL	-55 °C	125 °C	Crimp	Thermoplastic	Blue	Receptacle		Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	1	Male Pin	2	Latch Holder
Amphenol Sine Systems Corp ATM04-12PC-SR1GN	-55 °C	125 °C	Crimp	Thermoplastic	Green	Receptacle	Contacts Not Included	Cap (Cover) Sealed Strain Relief	Free Hanging (In-Line)	2	Male Pin	12
Amphenol Sine Systems Corp ATM04-6P-SR01WT	-55 °C	125 °C	Crimp	Thermoplastic	White	Receptacle		Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	3	Male Pin	6	Latch Holder
Amphenol Sine Systems Corp ATM04-12PA-PM01	-55 °C	125 °C	Crimp	Thermoplastic	Gray	Receptacle	Contacts Not Included	Sealed		2	Male Pin	12	Latch Holder
Amphenol Sine Systems Corp ATM04-2P-SR01GN	-55 °C	125 °C	Crimp	Thermoplastic	Green	Receptacle		Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	1	Male Pin	2	Latch Holder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.13
		10	$ 1.93
		25	$ 1.83
		50	$ 1.79
		100	$ 1.70
		250	$ 1.50

Description

General part information

ATM04 Series

4 Rectangular Connectors - Housings Receptacle Green

Documents

Technical documentation and resources

ATM Series SR01

Datasheet

A Series Family

Datasheet
