C1360.21.90
ActivePrysmian Group

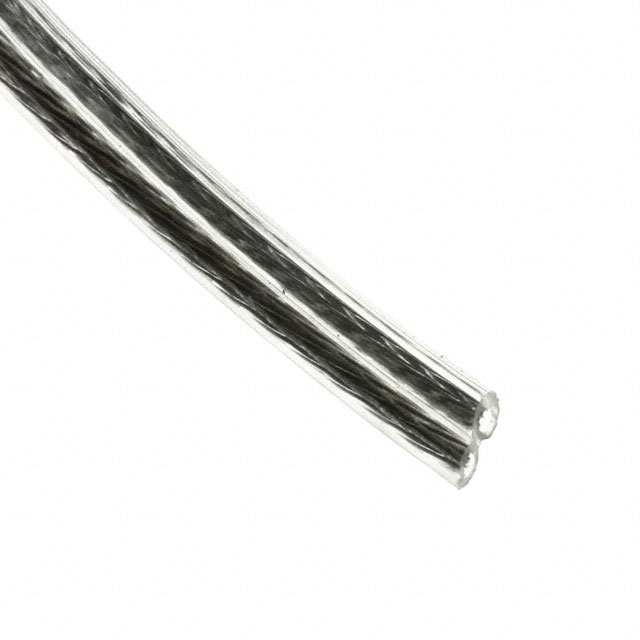

CABLE SPKR 2COND 20AWG CLR 100'
Deep-Dive with AI
Search across all available documentation for this part.
C1360.21.90
ActivePrysmian Group
CABLE SPKR 2COND 20AWG CLR 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1360.21.90 |
|---|---|
| Cable Type | Speaker |
| Conductor Material | Copper, Tinned, Copper, Bare |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 10 |
| Jacket (Insulation) Diameter [diameter] | 4.06 mm |
| Jacket (Insulation) Diameter [diameter] | 0.16 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm |
| Jacket Color | Clear |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 2 |
| Usage | Home, Audio-Video |
| Voltage | 120 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 38.57 | |
| 1 | $ 191.91 | |||
| 3 | $ 177.54 | |||
| 5 | $ 31.56 | |||
| 5 | $ 171.39 | |||
| 7 | $ 167.28 | |||
| 10 | $ 163.18 | |||
| 10 | $ 24.55 | |||
| 25 | $ 152.91 | |||
| 50 | $ 144.70 | |||
Description
General part information
C1360 Series
2 Conductor Speaker Cable Clear 20 AWG 100.0' (30.5m)
Documents
Technical documentation and resources
No documents available
