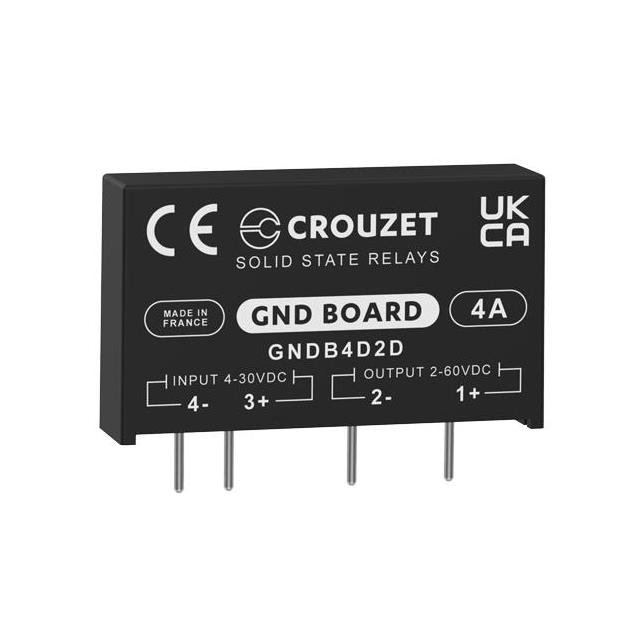

GNDB4D2D
ActiveCrouzet
SSR 4A OUT 60VDC IN 4-30VDC NONE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GNDB4D2D
ActiveCrouzet
SSR 4A OUT 60VDC IN 4-30VDC NONE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GNDB4D2D |
|---|---|
| Approval Agency | UKCA, CE |
| Load Current | 4 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 30 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 36 V |
| Voltage - Load [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 31.64 | |
Description
General part information
GNDB4D Series
Solid State SPST-NO (1 Form A) 4-SIP
