KD14.1101.109

Active

SCHURTER Inc.

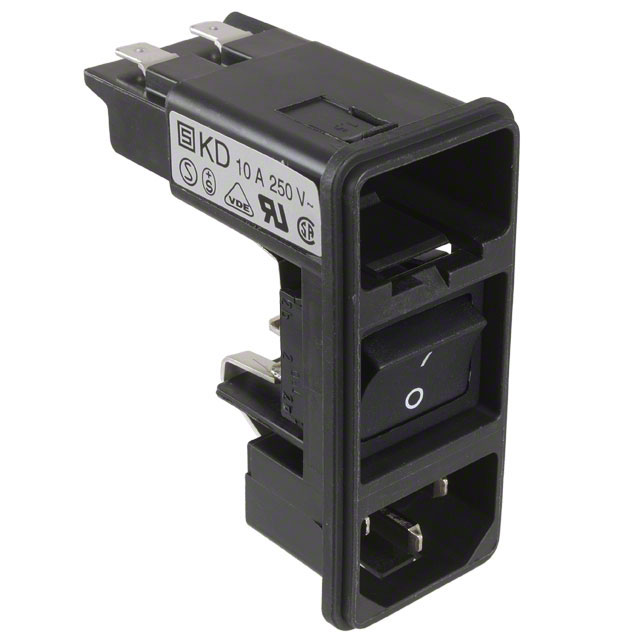

FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH

Search across all available documentation for this part.

Active

SCHURTER Inc.

FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 2-POLE SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	KD14.1101.109

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.5 mm
Panel Cutout Dimensions [y]	66.5 mm
Panel Thickness [x]	2.5 mm
Panel Thickness [x]	0.098 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Thickness [x]	Panel Thickness [x]	Fuse Holder, Drawer	Switch Features	Material Flammability Rating	Connector Type	Accomodates a Fuse	Mounting Type	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Termination	Termination	Current Rating - Appliance Inlet	Filter Type	Approval Agency	Connector Style
SCHURTER Inc. KD14.1101.109	2.5 mm	0.098 in	Drawer Sold Separate	Switch On-Off	UL94 V-0	Receptacle Male Blades - Module		Panel Mount Snap-In	250 VAC	27.5 mm	66.5 mm	IP40	0.189 " 4.8 mm	Quick Connect	10 A	Unfiltered - Commercial	CCC CSA ENEC UL	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
