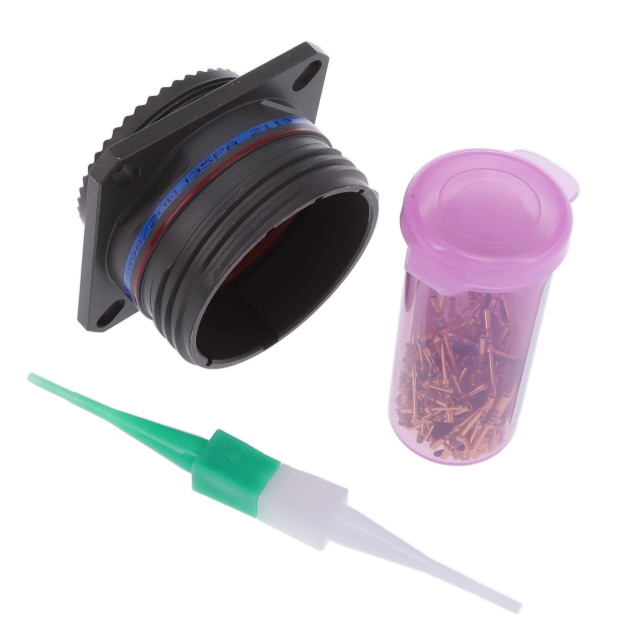

D38999/20WJ35PA
ActiveAmphenol Aerospace Operations
CONN RCPT MALE 128POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/20WJ35PA
ActiveAmphenol Aerospace Operations
CONN RCPT MALE 128POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/20WJ35PA |
|---|---|
| Applications | Aviation, Aerospace, Marine, Military |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Number of Positions | 128 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | A |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum |
| Shell Size, MIL | J |
| Shielding | Shielded |
| Termination | Crimp |
D38999/20WJ Series
...
| Part | Qualification | Contact Size | Shell Material | Contact Shape | Ingress Protection | Grade | Orientation | Note | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Type | Connector Type | Housing Color | Contact Type | Shell Size, MIL | Shell Finish | Shielding | Shell Size - Insert | Mounting Feature | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Contact Finish - Mating | Contact Material | Color | Applications | Termination | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | 10 20 | Aluminum | Circular | Environment Resistant | Military | B | Contacts Not Included | 11 | -65 ░C | 347 °F | For Female Sockets | Receptacle Housing | Olive Drab | Crimp | J | Cadmium | Shielded | 25-11 | Flange | |||||||||||
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | 12 | Aluminum | Circular | Environment Resistant | Military | A | Contacts Not Included | 19 | -65 ░C | 347 °F | For Female Sockets | Receptacle Housing | Olive Drab | Crimp | J | Cadmium | Shielded | Flange | 25 | 19 | ||||||||||
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | Aluminum | Environment Resistant | Military | N | 43 | -65 ░C | 347 °F | Male Pins Receptacle | J | Olive Drab Cadmium | Shielded | Flange | 25 | 43 | 2.54 çm | 100 çin | Metal | Gold | Copper Alloy | Olive Drab | Aviation Marine Military | Crimp | ||||||||
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | 12 | Aluminum | Circular | Environment Resistant | Military | N | Contacts Not Included | 19 | -65 ░C | 347 °F | For Male Pins | Receptacle Housing | Olive Drab | Crimp | J | Cadmium | Shielded | Flange | 25 | 19 | ||||||||||
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | Aluminum | Environment Resistant | Military | B | 37 | -65 ░C | 347 °F | Male Pins Receptacle | J | Olive Drab Cadmium | Shielded | Flange | 25 | 37 | 2.54 çm | 100 çin | Metal | Gold | Copper Alloy | Olive Drab | Aviation Marine Military | Crimp | ||||||||
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | 16 | Aluminum | Circular | Environment Resistant | Military | A | Contacts Not Included | 37 | -65 ░C | 347 °F | For Male Pins | Receptacle Housing | Olive Drab | Crimp | J | Cadmium | Shielded | Flange | 25 | 37 | ||||||||||
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | Aluminum | Environment Resistant | Military | A | 128 | -65 ░C | 347 °F | Male Pins Receptacle | J | Olive Drab Cadmium | Shielded | Flange | 1.27 µm | 50 µin | Metal | Gold | Copper Alloy | Olive Drab | Aerospace Aviation Marine Military | Crimp | ||||||||||
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | Aluminum | Circular | Environment Resistant | Military | A | Contacts Not Included | 56 | -65 ░C | 347 °F | For Female Sockets | Receptacle Housing | Olive Drab | Crimp | J | Cadmium | Shielded | Flange | 25 | 4 | 16 (8) 20 (48) | ||||||||||
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | 12 16 | Aluminum | Circular | Environment Resistant | Military | A | Contacts Not Included | 24 | -65 ░C | 347 °F | For Male Pins | Receptacle Housing | Olive Drab | Crimp | J | Cadmium | Shielded | Flange | 25 | 24 | ||||||||||
Amphenol Aerospace Operations | MIL-DTL-38999 Series III | Aluminum | Circular | Environment Resistant | Military | A | Contacts Not Included | 56 | -65 ░C | 347 °F | For Female Sockets | Receptacle Housing | Olive Drab | Crimp | J | Cadmium | Shielded | Flange | 25 | 4 | 16 (8) 20 (48) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 82.80 | |
| 10 | $ 80.12 | |||
| 25 | $ 77.62 | |||
| 50 | $ 76.43 | |||
| 100 | $ 71.99 | |||
| 250 | $ 70.97 | |||
| 500 | $ 68.05 | |||
| 1000 | $ 66.23 | |||
| Bulk | 1 | $ 321.57 | ||
| 10 | $ 315.34 | |||
Description
General part information
D38999/20WJ Series
128 Position Circular Connector Receptacle, Male Pins Crimp
