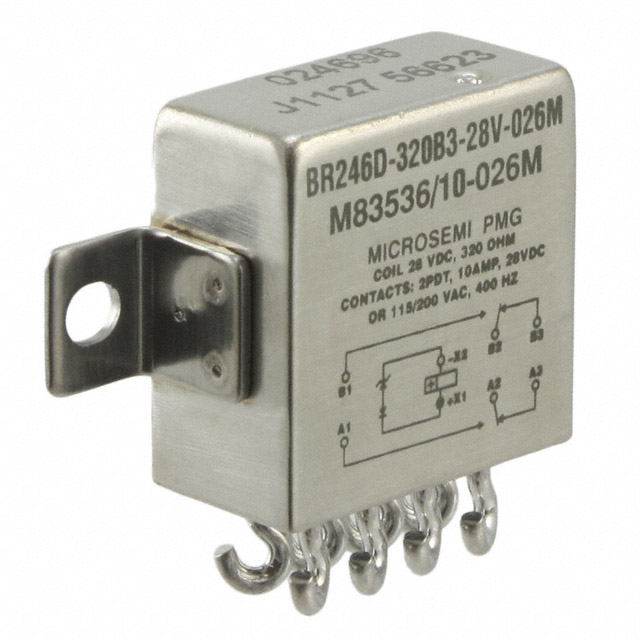

BR246D-320B3-28V-026M
ActiveMicrosemi Corporation
RELAY GEN PURPOSE DPDT 10A 28V
Deep-Dive with AI
Search across all available documentation for this part.
BR246D-320B3-28V-026M
ActiveMicrosemi Corporation
RELAY GEN PURPOSE DPDT 10A 28V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BR246D-320B3-28V-026M |
|---|---|
| Coil Current | 87.5 mA |
| Coil Resistance | 320 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 28 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2080 VA, 280 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 5.1 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage | 208 VAC, 28 VDC |
| Termination Style | Solder Hook |
BR246D-32 Series
| Part | Must Operate Voltage | Contact Rating (Current) | Switching Voltage | Coil Voltage | Operate Time | Must Release Voltage | Release Time | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Contact Form | Relay Type | Mounting Type | Termination Style | Coil Resistance | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microsemi Corporation | 18 VDC | 10 A | 28 VDC 208 VAC | 28 VDC | 15 ms | 5.1 VDC | 15 ms | Non Latching | 125 °C | -70 °C | 87.5 mA | DPDT (2 Form C) | General Purpose | Chassis Mount | Plug In | 320 Ohms | 280 W 2080 VA |
Microsemi Corporation | 18 VDC | 10 A | 28 VDC 208 VAC | 28 VDC | 15 ms | 5.1 VDC | 15 ms | Non Latching | 125 °C | -70 °C | 87.5 mA | DPDT (2 Form C) | General Purpose | Socketable | Plug In | 320 Ohms | 280 W 2080 VA |
Microsemi Corporation | 18 VDC | 10 A | 28 VDC 208 VAC | 28 VDC | 15 ms | 5.1 VDC | 15 ms | Non Latching | 125 °C | -70 °C | 87.5 mA | DPDT (2 Form C) | General Purpose | Chassis Mount | Solder Hook | 320 Ohms | 280 W 2080 VA |
Microsemi Corporation | 18 VDC | 10 A | 28 VDC 208 VAC | 28 VDC | 15 ms | 5.1 VDC | 15 ms | Non Latching | 125 °C | -70 °C | 87.5 mA | DPDT (2 Form C) | General Purpose | Chassis Mount | Plug In | 320 Ohms | 280 W 2080 VA |
Microsemi Corporation | 18 VDC | 10 A | 28 VDC 208 VAC | 28 VDC | 15 ms | 5.1 VDC | 15 ms | Non Latching | 125 °C | -70 °C | 87.5 mA | DPDT (2 Form C) | General Purpose | Chassis Mount | Plug In | 320 Ohms | 280 W 2080 VA |
Microsemi Corporation | 18 VDC | 10 A | 28 VDC 208 VAC | 28 VDC | 15 ms | 5.1 VDC | 15 ms | Non Latching | 125 °C | -70 °C | 87.5 mA | DPDT (2 Form C) | General Purpose | Chassis Mount | Solder Hook | 320 Ohms | 280 W 2080 VA |
Microsemi Corporation | 18 VDC | 10 A | 28 VDC 208 VAC | 28 VDC | 15 ms | 5.1 VDC | 15 ms | Non Latching | 125 °C | -70 °C | 87.5 mA | DPDT (2 Form C) | General Purpose | Chassis Mount | Solder Hook | 320 Ohms | 280 W 2080 VA |
Microsemi Corporation | 18 VDC | 10 A | 28 VDC 208 VAC | 28 VDC | 15 ms | 5.1 VDC | 15 ms | Non Latching | 125 °C | -70 °C | 87.5 mA | DPDT (2 Form C) | General Purpose | Chassis Mount | 320 Ohms | 280 W 2080 VA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BR246D-32 Series
General Purpose Relay DPDT (2 Form C) 28VDC Coil Chassis Mount
