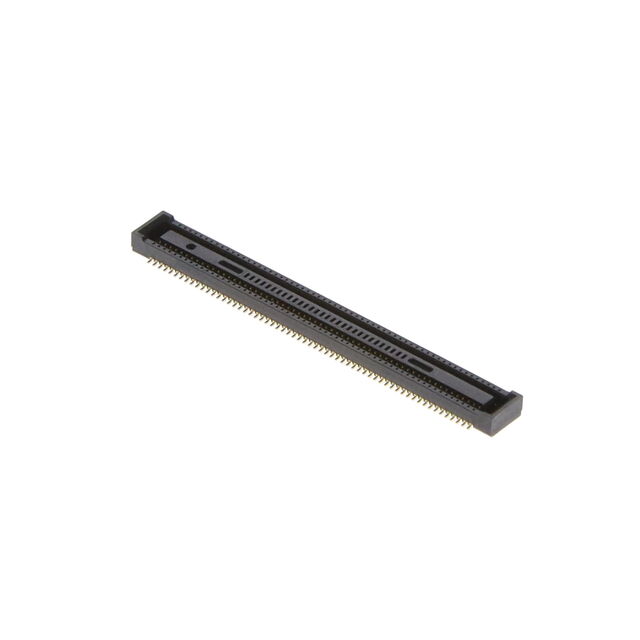

DF40C-120DS-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 120POS SMD, GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 120POS SMD, GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF40C-120DS-0.4V(51)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

...

Part	Mounting Type	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Number of Positions	Number of Rows	Features	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DF40C-100DS-0.4V(58)	Surface Mount	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Gold	0.057 in	1.45 mm	1.5 mm 3 mm	100	2
Hirose Electric USA, Inc. DF40C-30DP-0.4V(58)	Surface Mount	0.016 in	0.4 mm	Outer Shroud Contacts Plug	Gold			1.5 mm 2 mm 2.5 mm 3 mm 3.5 mm 4 mm	30	2	Solder Retention	1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40C-90DS-0.4V(51)	Surface Mount	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Gold	0.057 in	1.45 mm	1.5 mm	90	2
Hirose Electric USA, Inc. DF40C-30DP-0.4V(57)				Outer Shroud Contacts Plug					30
Hirose Electric USA, Inc. DF40C-20DS-0.4V(55)				Center Strip Contacts Receptacle					20
Hirose Electric USA, Inc. DF40C-120DS-0.4V(51)	Surface Mount	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Gold	0.057 in	1.45 mm	1.5 mm	120	2				1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. DF40C-50DP-0.4V(57)				Outer Shroud Contacts Plug					50
Hirose Electric USA, Inc. DF40C-40DP-0.4V(68)				Outer Shroud Contacts Plug					40
Hirose Electric USA, Inc. DF40C-20DP-0.4V(58)	Surface Mount	0.016 in	0.4 mm	Outer Shroud Contacts Plug	Gold			1.5 mm 2 mm 2.5 mm 3 mm 3.5 mm 4 mm	20	2	Solder Retention	1.14 mm	0.045 in
Hirose Electric USA, Inc. DF40C-24DS-0.4V(77)				Center Strip Contacts Receptacle					24
