SE98ATL,147

Obsolete

Freescale Semiconductor - NXP

IC TEMP SENSOR DDR 3.6V 8-HXSON

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC TEMP SENSOR DDR 3.6V 8-HXSON

Technical Specifications

Parameters and characteristics for this part

Specification	SE98ATL,147

Accuracy	4 °C
Function	Temp Monitoring System (Sensor)
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Alarm	True
Output Fan	True
Output Type	I2C/SMBus
Package / Case	8-XFDFN Exposed Pad
Sensing Temperature [Max]	125 °C
Sensing Temperature [Min]	-40 °C
Sensor Type	Internal

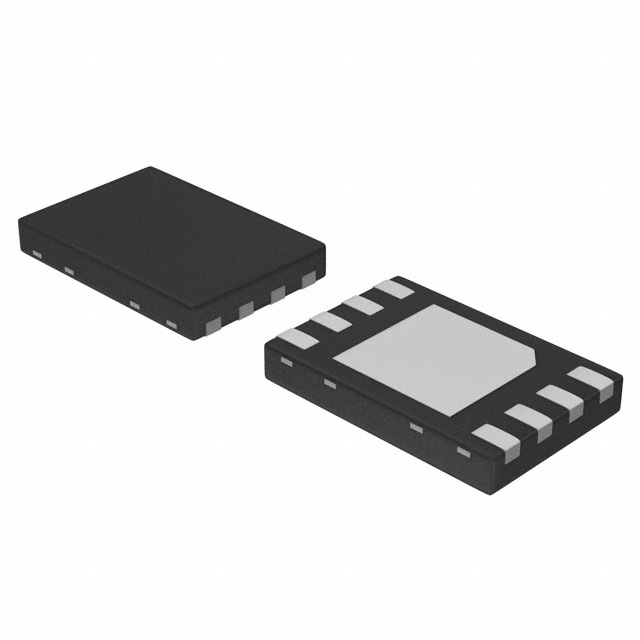

Supplier Device Package	8-HXSON (2x3)
Topology	ADC (Sigma Delta), Register Bank
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.7 V

Part	Supplier Device Package	Accuracy	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Sensing Temperature [Max]	Sensing Temperature [Min]	Topology	Function	Supplier Device Package [x]	Supplier Device Package [y]
Freescale Semiconductor - NXP SE98ATL,147	8-HXSON (2x3)	4 °C	I2C/SMBus	3.6 V	1.7 V	Internal	Surface Mount	125 °C	-40 °C	8-XFDFN Exposed Pad	125 °C	-40 °C	ADC (Sigma Delta) Register Bank	Temp Monitoring System (Sensor)
Freescale Semiconductor - NXP SE98TK,118	8-HVSON (3x3)	4 °C	I2C/SMBus	3.6 V	1.7 V	Internal	Surface Mount	125 °C	-40 °C	8-VFDFN Exposed Pad	125 °C	-40 °C	ADC (Sigma Delta) Register Bank	Temp Monitoring System (Sensor)
Freescale Semiconductor - NXP SE98ATP,147	8-HWSON (2x3)	4 °C	I2C/SMBus	3.6 V	1.7 V	Internal	Surface Mount	125 °C	-40 °C	8-WFDFN Exposed Pad	125 °C	-40 °C	ADC (Sigma Delta) Register Bank	Temp Monitoring System (Sensor)	2	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Temp Monitoring System (Sensor) -40°C ~ 125°C Internal Sensor I2C/SMBus Output 8-HXSON (2x3)
