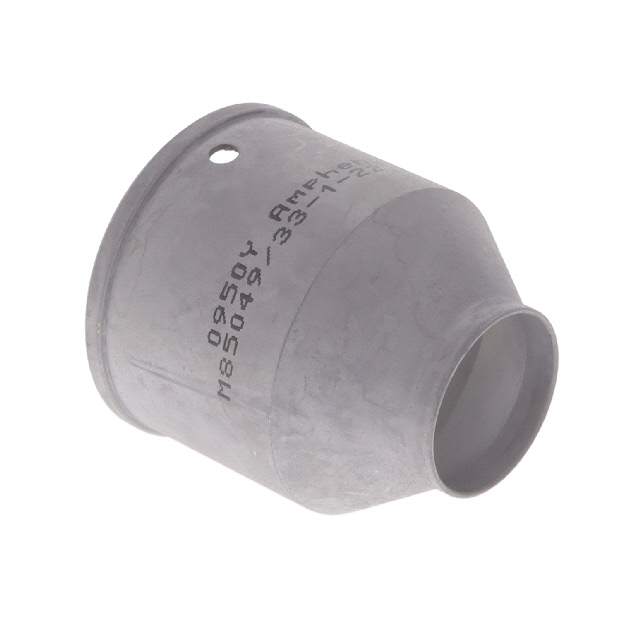

M85049/33-1-22

Active

Amphenol Interconnect India

CONN BACKSHELL SZ22

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M85049/33-1-22

Active

Amphenol Interconnect India

CONN BACKSHELL SZ22

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/33-1-22

Cable Exit	180 °
For Use With/Related Products	MIL-DTL-38999 Series I, II
Material	Aluminum
Shell Size - Insert	22
Shielding	Unshielded
Type	Backshell

M85049/33 Series

Part	Shielding	Shell Size - Insert	For Use With/Related Products	Type	Material	Cable Exit	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol Interconnect India M85049/33-1-22	Unshielded	22	MIL-DTL-38999 Series I II	Backshell	Aluminum	180 °
Amphenol Interconnect India M85049/33-2-20Z	Unshielded	20 21	MIL-DTL-38999 Series I II	Backshell	Aluminum Alloy	180 °	Black	38.1 mm	1.5 in	Zinc Cobalt	23.62 mm	0.93 in
Amphenol Interconnect India M85049/33-2-08Z	Unshielded	8 9	MIL-DTL-38999 Series I II	Backshell	Aluminum Alloy	180 °	Black	19.05 mm	0.75 in	Zinc Cobalt	6.86 mm	0.27 in
Amphenol Interconnect India M85049/33-2-24Z	Unshielded	24 25	MIL-DTL-38999 Series I II	Backshell	Aluminum Alloy	180 °	Black	44.45 mm	1.75 in	Zinc Cobalt	28.7 mm	1.13 in
Amphenol Interconnect India M85049/33-2-14Z	Unshielded	14 15	MIL-DTL-38999 Series I II	Backshell	Aluminum Alloy	180 °	Black	27.94 mm	1.1 "	Zinc Cobalt			14.22 mm	0.56 in
Amphenol Interconnect India M85049/33-2-18Z	Unshielded		MIL-DTL-38999 Series I II	Backshell	Aluminum Alloy	180 °	Black	35.56 mm	1.4 in	Zinc Cobalt			20.32 mm	0.8 in
Amphenol Interconnect India M85049/33-2-12Z	Unshielded	12 13	MIL-DTL-38999 Series I II	Backshell	Aluminum Alloy	180 °	Black	25.4 mm	1 in	Zinc Cobalt	11.18 mm	0.44 in
Amphenol Interconnect India M85049/33-2-10Z	Unshielded	10 11	MIL-DTL-38999 Series I II	Backshell	Aluminum Alloy	180 °	Black	21.59 mm	0.85 in	Zinc Cobalt
Amphenol Interconnect India M85049/33-2-16Z	Unshielded	16 17	MIL-DTL-38999 Series I II	Backshell	Aluminum Alloy	180 °	Black	31.75 mm	1.25 in	Zinc Cobalt	17.53 mm	0.69 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 54.07
		10	$ 41.89

Description

General part information

M85049/33 Series

Connector Backshell 22

Documents

Technical documentation and resources
