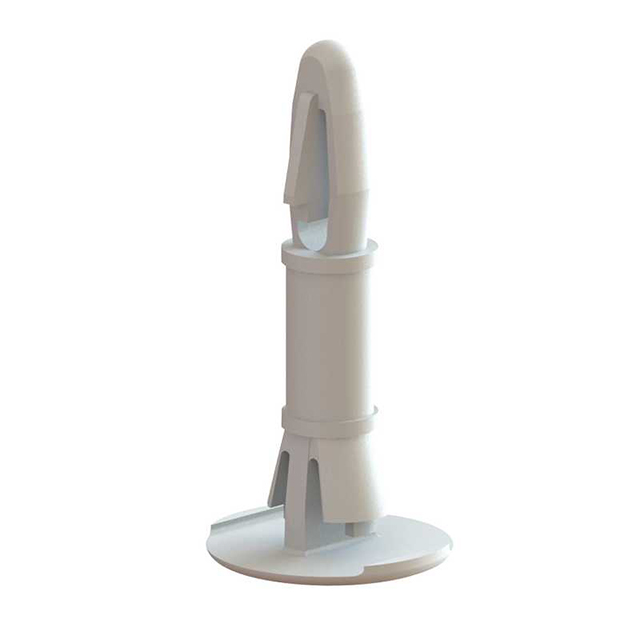

RLCBSR-10-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 5/8"

Deep-Dive with AI

Search across all available documentation for this part.

RLCBSR-10-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 5/8"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RLCBSR-10-01

Between Board Height	15.88 mm
Between Board Height	0.625 in
Between Board Height	0.625 in
Features	Locking, Reverse Mounting
Holding Type	Snap Lock
Length - Overall [x]	27.7 mm
Length - Overall [x]	1.091 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.187 in
Mounting Hole Diameter [diameter]	4.75 mm
Mounting Hole Diameter [diameter]	3 in
Mounting Panel Thickness [Max]	0.063 in
Mounting Panel Thickness [Max]	1.6 mm
Mounting Panel Thickness [Min]	0.059 in
Mounting Panel Thickness [Min]	1.5 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	3.18 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

RLCBSR Series

Part	Material	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Between Board Height	Between Board Height	Between Board Height	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Holding Type	Features	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Length - Overall	Length - Overall
Essentra Access Solutions RLCBSR-10-01	Nylon	0.063 in	0.059 in	1.5 mm	1.6 mm	15.88 mm	0.625 in	0.625 in	0.187 in	4.75 mm	3 in	Snap Lock	Locking Reverse Mounting	Snap Lock	0.125 in	0.125 in	3.18 mm	27.7 mm	1.091 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions RLCBSRE-4-01	Nylon	0.065 in	0.059 in	1.5 mm	1.65 mm	6.35 mm	0.25 in	0.25 in	0.213 in	5.4 mm		Snap Lock	Locking Reverse Mounting	Snap Lock	0.157 "		3.99 mm	20.15 mm	0.793 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions RLCBSR1-4-01	Nylon	0.065 in	0.059 in	1.5 mm	1.65 mm	6.35 mm	0.25 in	0.25 in	0.25 in	6.35 mm	0.25 in	Snap Lock	Locking Reverse Mounting	Snap Lock	0.157 "		3.99 mm	20.15 mm	0.793 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions RLCBSRE-6-01	Nylon	0.065 in	0.059 in	1.5 mm	1.65 mm	9.53 mm	0.375 in	0.375 in	0.213 in	5.4 mm		Snap Lock	Locking Reverse Mounting	Snap Lock	0.157 "		3.99 mm			0.0625 "	0.062 "	1.57 mm	23.24 mm	0.915 in
Essentra Access Solutions RLCBSR-7-01	Nylon	0.063 in	0.059 in	1.5 mm	1.6 mm	0.4375 in	0.438 in	11.13 mm	0.187 in	4.75 mm	3 in	Snap Lock	Locking Reverse Mounting	Snap Lock	0.125 in	0.125 in	3.18 mm	22.9 mm	0.902 in	0.0625 "	0.062 "	1.57 mm
Essentra Access Solutions RLCBSR-6-01	Nylon	0.063 in	0.059 in	1.5 mm	1.6 mm	9.53 mm	0.375 in	0.375 in	0.187 in	4.75 mm	3 in	Snap Lock	Locking Reverse Mounting	Snap Lock	0.125 in	0.125 in	3.18 mm	21.3 mm	0.839 "	0.0625 "	0.062 "	1.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.46
		5	$ 0.40
		10	$ 0.33
		25	$ 0.31
		50	$ 0.30
		100	$ 0.26
		250	$ 0.25
		500	$ 0.24
		1000	$ 0.22

Description

General part information

RLCBSR Series

Board Support Snap Lock / Snap Lock Nylon 0.625" (15.88mm) 5/8"

Documents

Technical documentation and resources

No documents available
