GL50-RT/32/40A/98A

Active

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTOELECTRIC (AUTOMATION)

Technical Specifications

Parameters and characteristics for this part

Specification	GL50-RT/32/40A/98A

Connection Method	Connector, M8
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Configuration	PNP - Open Collector, Light-ON\Dark-ON
Response Time	160 µs
Sensing Distance	50 mm
Sensing Distance	1.969 in
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Distance	Sensing Distance	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Output Configuration	Response Time
PEPPERL+FUCHS GL50-RT/32/40A/98A	50 mm	1.969 in	IP67	30 VDC	10 VDC	Connector M8	Through-Beam	-20 C	60 °C	Red LED	PNP - Open Collector Light-ON\Dark-ON	160 µs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

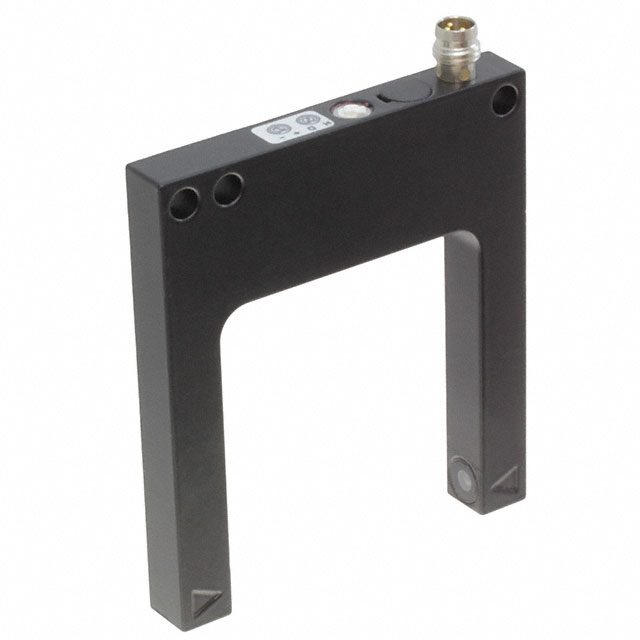

Through-Beam Optical Sensor 1.969" (50mm) PNP - Open Collector, Light-ON\Dark-ON
