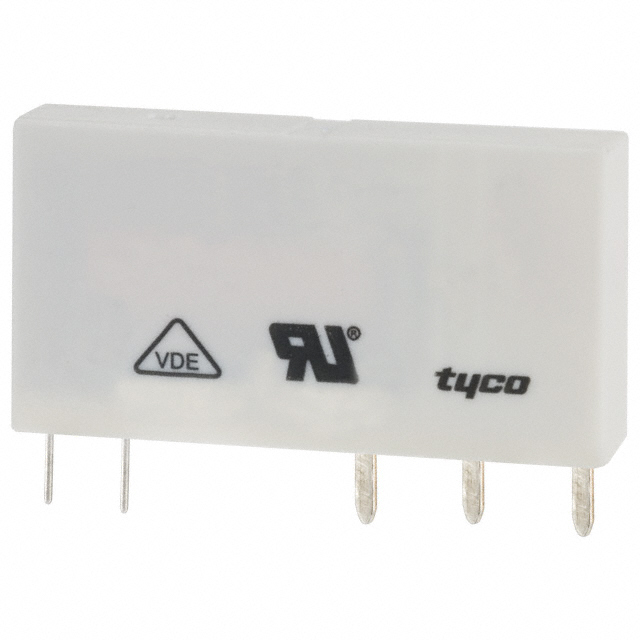

V23092A1012A202

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 6A 12V

Deep-Dive with AI

Search across all available documentation for this part.

V23092A1012A202

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 6A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23092A1012A202

Approval Agency	cURus, VDE
Coil Current	14.2 mA
Coil Resistance	848 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Load - Max Switching [Max]	2400 VA
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	0.6 VDC
Operate Time	12 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

V23092 Series

Part	Termination Style	Operate Time	Must Operate Voltage	Contact Form	Switching Voltage [Max]	Approval Agency	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Must Release Voltage	Mounting Type	Release Time	Coil Current	Load - Max Switching [Max]	Contact Material	Relay Type	Seal Rating	Contact Rating (Current)	Coil Type
TE Connectivity Potter & Brumfield Relays 4-1393236-2	PC Pin	12 ms	42 VDC	SPDT (1 Form C)	400 VAC	cURus VDE	20.5 kOhms	85 °C	-40 °C	60 VDC	3 VDC	Through Hole	5 ms	2.9 mA	2400 VA	Gold (Au) Silver Nickel (AgNi)	General Purpose	Sealed - Fully	6 A	Non Latching
TE Connectivity Potter & Brumfield Relays 1956024-1	PC Pin	12 ms	8.4 VDC	SPDT (1 Form C)	400 VAC	cURus VDE	848 Ohms	85 °C	-40 °C	12 VDC	0.6 VDC	Through Hole	5 ms	14.2 mA	2400 VA	Silver Tin Oxide (AgSnO)	General Purpose		6 A	Non Latching
TE Connectivity Potter & Brumfield Relays 1-1416250-3	Plug In	12 ms	3.5 VDC	SPDT (1 Form C)	400 VAC	cURus VDE	147 Ohms	85 °C	-40 °C	5 VDC	0.25 VDC	Socketable	5 ms	34 mA	2400 VA	Silver Tin Oxide (AgSnO)	General Purpose		6 A	Non Latching
TE Connectivity Potter & Brumfield Relays V23092A1012A202	PC Pin	12 ms	8.4 VDC	SPST-NO (1 Form A)	400 VAC	cURus VDE	848 Ohms	85 °C	-40 °C	12 VDC	0.6 VDC	Through Hole	5 ms	14.2 mA	2400 VA	Silver Tin Oxide (AgSnO)	General Purpose	Sealed - Fully	6 A	Non Latching
TE Connectivity Potter & Brumfield Relays 1956024-7	Plug In	12 ms	42 VDC	SPDT (1 Form C)	400 VAC	cURus VDE	20.5 kOhms	85 °C	-40 °C	60 VDC	3 VDC	Socketable	5 ms	2.9 mA	2400 VA	Gold (Au) Silver Tin Oxide (AgSnO)	General Purpose	Sealed - Fully	6 A	Non Latching
TE Connectivity Potter & Brumfield Relays 4-1415353-1	Plug In	12 ms	3.5 VDC	SPDT (1 Form C)	400 VAC	cURus VDE	147 Ohms	85 °C	-40 °C	5 VDC	0.25 VDC	Socketable	5 ms	34 mA	2400 VA		General Purpose		6 A	Non Latching
TE Connectivity Potter & Brumfield Relays V23092-A1012-A201	PC Pin	12 ms	8.4 VDC	SPDT (1 Form C)	400 VAC	cURus VDE	848 Ohms	85 °C	-40 °C	12 VDC	0.6 VDC	Through Hole	5 ms	14.2 mA	2400 VA	Silver Tin Oxide (AgSnO)	General Purpose	Sealed - Fully	6 A	Non Latching
TE Connectivity Potter & Brumfield Relays 2-1415068-1	PC Pin	12 ms	8.4 VDC	SPST-NO (1 Form A)	400 VAC	cURus VDE	848 Ohms	85 °C	-40 °C	12 VDC	0.6 VDC	Through Hole	5 ms	14.2 mA	2400 VA	Silver Nickel (AgNi)	General Purpose		6 A	Non Latching
TE Connectivity Potter & Brumfield Relays 1-1956024-0	Plug In	12 ms	3.5 VDC	SPDT (1 Form C)	400 VAC	cURus VDE	147 Ohms	85 °C	-40 °C	5 VDC	0.25 VDC	Socketable	5 ms	34 mA	2400 VA		General Purpose		6 A	Non Latching
TE Connectivity Potter & Brumfield Relays 7-1393236-3	PC Pin	12 ms	16.8 VDC	SPST-NO (1 Form A)	400 VAC	cURus VDE	3.39 kOhms	85 °C	-40 °C	24 VDC	1.2 VDC	Through Hole	5 ms	7.1 mA	2400 VA	Gold (Au) Silver Tin Oxide (AgSnO)	General Purpose		6 A	Non Latching

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.47
		20	$ 9.82
		40	$ 8.29
		100	$ 7.85
		260	$ 6.98
		500	$ 6.54
		1000	$ 6.11

Description

General part information

V23092 Series

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole

Documents

Technical documentation and resources

No documents available
