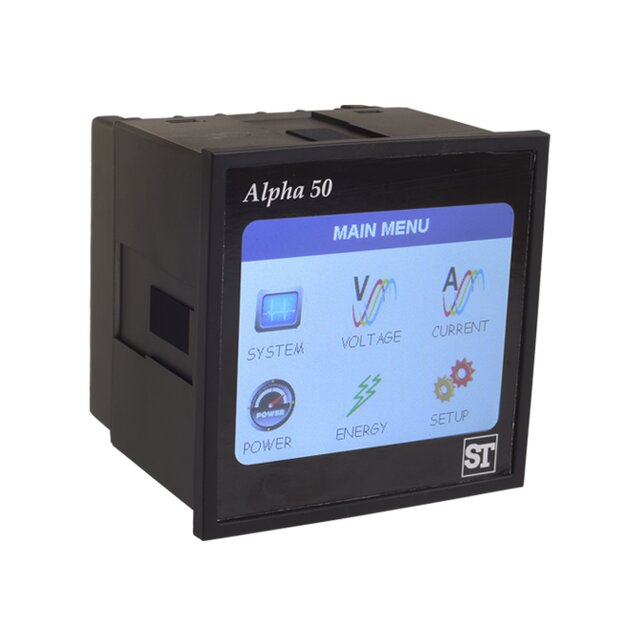

AP50-3GURS20400000

Active

Sifam Tinsley Instrumentation Inc

MULT METER 1A 5A/480V LCD PNL MT

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

MULT METER 1A 5A/480V LCD PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	AP50-3GURS20400000

Display Type	LCD - Tri Color Characters
Ingress Protection	IP54 - Dust Protected, Water Resistant
Measuring Range	5 A
Measuring Range [Max]	500 V
Measuring Range [Min]	100 V
Measuring Type	Current (3-Phase), Wattage, Voltage
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Type	Relay, Analog (2)
Panel Cutout Dimensions [x]	92.8 mm
Panel Cutout Dimensions [y]	92.8 mm
Termination Style	Wire Leads
Type	Energy Monitor
Voltage - Supply [Max]	250 VAC
Voltage - Supply [Min]	100 VAC

Part	Ingress Protection	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Display Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Measuring Range [Min]	Measuring Range	Measuring Range [Max]	Output Type	Measuring Type	Operating Temperature [Min]	Operating Temperature [Max]
Sifam Tinsley Instrumentation Inc AP50-3GURS20400000	IP54 - Dust Protected Water Resistant	Wire Leads	100 VAC	250 VAC	Energy Monitor	LCD - Tri Color Characters	92.8 mm	92.8 mm	100 V	5 A	500 V	Analog (2) Relay	Current (3-Phase) Voltage Wattage	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 475.00

General part information

Energy Monitor LCD - Tri Color Characters Display Panel Mount

Technical documentation and resources
