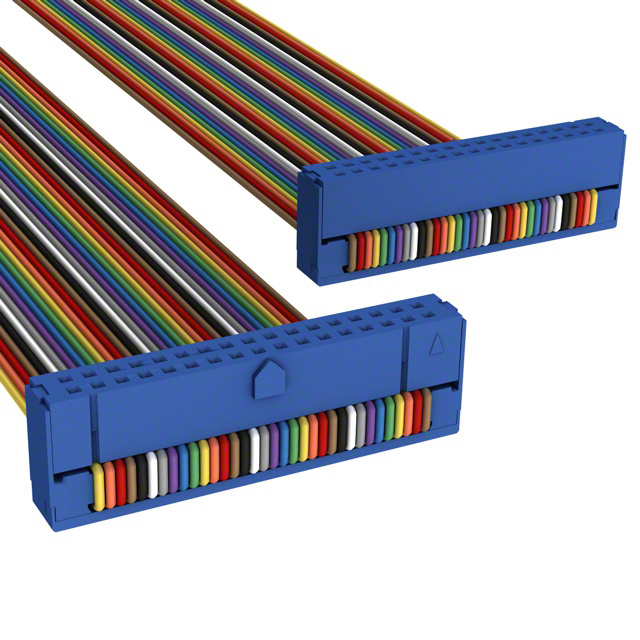

C3DDG-3406M

Active

CW Industries

IDC CABLE - CKR34G/AE34M/CKR34G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR34G/AE34M/CKR34G

Technical Specifications

Parameters and characteristics for this part

Specification	C3DDG-3406M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish	Shielding	Connector Type	Color	Length	Length	Length	Pitch - Cable	Pitch - Cable	Features	Length [x]	Length [x]
CW Industries C3DDG-3406M	2	34	10 Áin	0.25 Ám	0.1 in	2.54 mm	IDC	Gold	Unshielded	Socket to Socket	Multiple Ribbon	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Polarizing Key Strain Relief
CW Industries C3DDG-3406G	2	34	10 Áin	0.25 Ám	0.1 in	2.54 mm	IDC	Gold	Unshielded	Socket to Socket		152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	Polarizing Key Strain Relief
CW Industries C3DDG-3436G	2	34	10 Áin	0.25 Ám	0.1 in	2.54 mm	IDC	Gold	Unshielded	Socket to Socket					0.05 "	1.27 mm	Polarizing Key Strain Relief	3 ft	914.4 mm
CW Industries C3DDG-3436M	2	34	10 Áin	0.25 Ám	0.1 in	2.54 mm	IDC	Gold	Unshielded	Socket to Socket	Multiple Ribbon				0.05 "	1.27 mm	Polarizing Key Strain Relief	3 ft	914.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
