UPL2000-D7

Active

Cinch Connectivity Solutions Trompeter

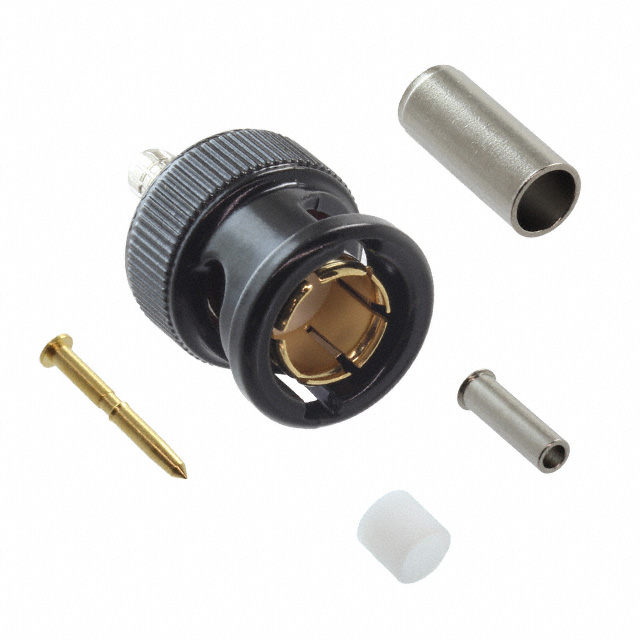

CONN BNC PLUG STR 75OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

UPL2000-D7

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPL2000-D7

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 9221, RG-179
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Black
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

UPL2000 Series

Part	Connector Style	Cable Group	Fastening Type	Voltage Rating	Insertion Loss	Contact Termination	Impedance	Frequency - Max [Max]	Center Contact Plating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Body Finish	Mating Cycles	Number of Ports	Mounting Type	Shield Termination	Center Contact Material	Housing Color	Body Material
Cinch Connectivity Solutions Trompeter UPL2000-D12/B	BNC	Nokia 0.6/2.8	Bayonet Lock	500 V	0.2 dB	Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel	500	1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass
Cinch Connectivity Solutions Trompeter UPL2000-D7	BNC	Belden 9221 RG-179	Bayonet Lock	500 V		Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel		1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass
Cinch Connectivity Solutions Trompeter UPL2000-D6/B	BNC	Belden 1695A	Bayonet Lock	500 V	0.2 dB	Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel	500	1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass
Cinch Connectivity Solutions Trompeter UPL2000-D4	BNC	Belden 1694A	Bayonet Lock	500 V	0.2 dB	Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel	500	1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass
Cinch Connectivity Solutions Trompeter UPL2000-D5/B	BNC		Bayonet Lock	500 V		Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel		1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass
Cinch Connectivity Solutions Trompeter UPL2000-D4/B	BNC	Belden 1694A	Bayonet Lock	500 V	0.2 dB	Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel	500	1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass
Cinch Connectivity Solutions Trompeter UPL2000-D3/B	BNC	RG-59	Bayonet Lock	500 V	0.2 dB	Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel	500	1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass
Cinch Connectivity Solutions Trompeter UPL2000-D1/B	BNC	Comm/Scope 7538	Bayonet Lock	500 V	0.2 dB	Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel	500	1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass
Cinch Connectivity Solutions Trompeter UPL2000-D2/B	BNC	Belden 1505A	Bayonet Lock	500 V	0.2 dB	Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel	500	1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass
Cinch Connectivity Solutions Trompeter UPL2000-D1	BNC	Comm/Scope 7538	Bayonet Lock	500 V	0.2 dB	Crimp	75 Ohms	4 GHz	Gold	Male Pin Plug	85 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Nickel	500	1	Free Hanging (In-Line)	Crimp	Brass	Black	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.00
		10	$ 15.76
		25	$ 15.61

Description

General part information

UPL2000 Series

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
