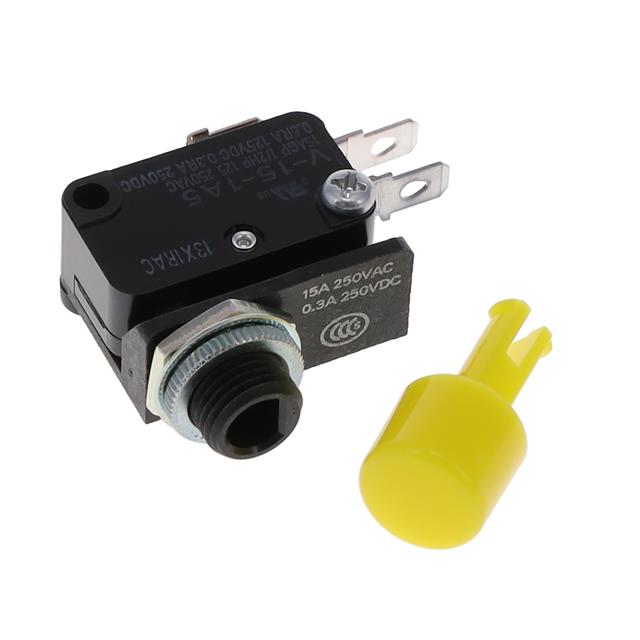

VAQ-4Y-K

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 15A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH PUSHBUTTON SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	VAQ-4Y-K

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Yellow
Current Rating (Amps)	10 A, 15 A
Electrical Life	100000 Cycles
Ingress Protection	IP00
Mechanical Life	3000000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	10.5 mm
Switch Function	On-Mom
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Circuit	Type	Mechanical Life	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Current Rating (Amps)	Color - Actuator/Cap	Switch Function	Panel Cutout Dimensions [diameter]	Electrical Life	Termination Style	Termination Style	Voltage Rating - AC	Actuator Type	Actuator Marking	Mounting Type
Omron Electronics Inc-EMC Div VAQ-4Y-K	SPDT	Standard	3000000 Cycles	IP00	-25 °C	80 C	30 V	10 A 15 A	Yellow	On-Mom	10.5 mm	100000 Cycles	Quick Connect Solder	0.187 in 4.7 mm	125 V	Button Round	No Marking	Panel Mount Rear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear

Technical documentation and resources

No documents available
