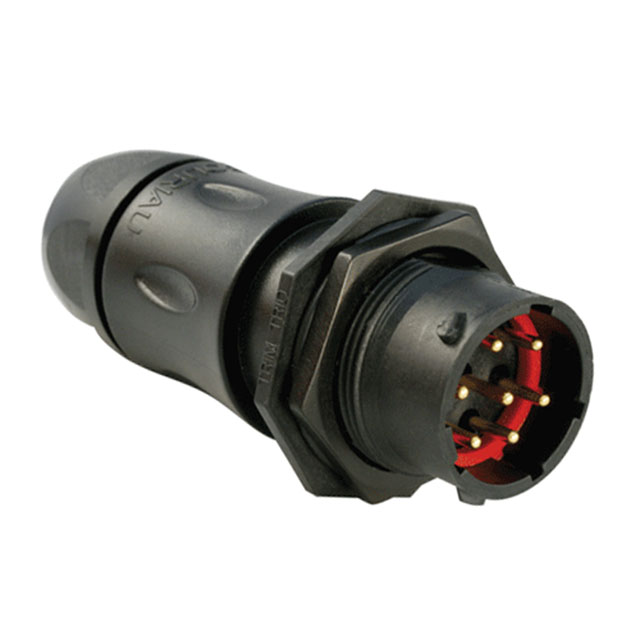

UTS7GJC147P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 7POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

UTS7GJC147P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 7POS PNL MT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS7GJC147P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	7
Shielding	Unshielded
Type	For Male Pins

UTS7G Series

Part	Ingress Protection	Note	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Shielding	Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Connector Type	Housing Color	Contact Size	Orientation	Features	Contact Type	Contact Shape	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert	Number of Positions
Souriau-Sunbank by Eaton UTS7GJC147P	IP68 IP69K	Contacts Not Included	Bulkhead - Front Side Nut	-40 °C	105 ░C	Bayonet Lock	UL94 V-0	Unshielded	For Male Pins	14	7	Receptacle Housing	Black	16	N	Backshell	Crimp	Circular	1	6
Souriau-Sunbank by Eaton UTS7GN147P	IP68 IP69K	Contacts Not Included	Bulkhead - Front Side Nut	-40 °C	105 ░C	Bayonet Lock	UL94 V-0	Unshielded	For Male Pins	14	7	Receptacle Housing	Black	16	N		Crimp	Circular	1	6
Souriau-Sunbank by Eaton UTS7GJC128P	IP68 IP69K	Contacts Not Included	Bulkhead - Front Side Nut	-40 °C	105 ░C	Bayonet Lock	UL94 V-0	Unshielded	For Male Pins			Receptacle Housing	Black	16	N	Backshell	Crimp	Circular			12-8	8
Souriau-Sunbank by Eaton UTS7GN128P	IP68 IP69K	Contacts Not Included	Bulkhead - Front Side Nut	-40 °C	105 ░C	Bayonet Lock	UL94 V-0	Unshielded	For Male Pins			Receptacle Housing	Black	16	N		Crimp	Circular			12-8	8
Souriau-Sunbank by Eaton UTS7GN104P	IP68 IP69K	Contacts Not Included	Bulkhead - Front Side Nut	-40 °C	105 ░C	Bayonet Lock	UL94 V-0	Unshielded	For Male Pins			Receptacle Housing	Black	16	N		Crimp	Circular			10-4	4
Souriau-Sunbank by Eaton UTS7GJC1412P	IP68 IP69K	Contacts Not Included	Bulkhead - Front Side Nut	-40 °C	105 ░C	Bayonet Lock	UL94 V-0	Unshielded	For Male Pins			Receptacle Housing	Black	16	N	Backshell	Crimp	Circular			14-12	12
Souriau-Sunbank by Eaton UTS7GJC104P	IP68 IP69K	Contacts Not Included	Bulkhead - Front Side Nut	-40 °C	105 ░C	Bayonet Lock	UL94 V-0	Unshielded	For Male Pins			Receptacle Housing	Black	16	N	Backshell	Crimp	Circular			10-4	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 24.95

Description

General part information

UTS7G Series

7 (6 + PE) Position Circular Connector Receptacle Housing Panel Mount Backshell
