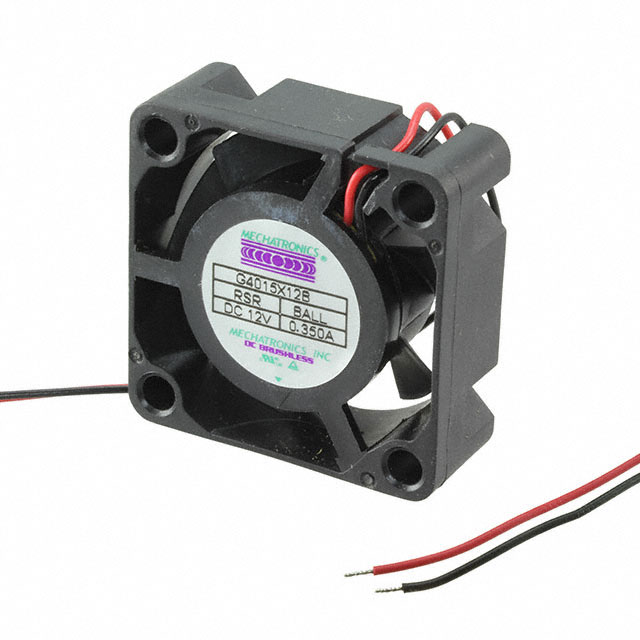

G4015X12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 40X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC Lead Wire Specs +2

G4015X12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 40X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet DC Lead Wire Specs +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G4015X12B-RSR

Air Flow	0.336 mł/min
Air Flow	12 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.35 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	39 dB(A)
RPM	12000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.6 in H2O
Static Pressure	149.5 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	23.13 g
Weight	0.051 lb
Width [x]	15 mm

G4015 Series

Part	Width [x]	Features	Termination	Approval Agency	Fan Type	Noise	Weight	Weight	Material - Blade	Static Pressure	Static Pressure	Current Rating (Amps)	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage - Rated	RPM	Bearing Type
Mechatronics Bearing Group G4015H05B-RSR	15 mm	Thermal Overload Protector (TOP)	2 Wire Leads	CE cUL TUV UL	Tubeaxial	29 dB(A)	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)	72.2 Pa	0.29 in H2O	400 mA	0.224 mł/min	8 CFM	40 mm	Square	40 mm	5 V	8000 RPM	Ball
Mechatronics Bearing Group G4015L12B-RSR	15 mm	Thermal Overload Protector (TOP)	2 Wire Leads	CE cUL TUV UL	Tubeaxial	20 dB	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)	17.4 Pa	0.07 in H2O		0.112 m³/min	4 CFM	40 mm	Square	40 mm	12 VDC	4000 RPM	Ball
Mechatronics Bearing Group G4015X12B-RSR	15 mm	Thermal Overload Protector (TOP)	2 Wire Leads	CE cUL TUV UL	Tubeaxial	39 dB(A)	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)	149.5 Pa	0.6 in H2O	0.35 A	0.336 mł/min	12 CFM	40 mm	Square	40 mm	12 VDC	12000 RPM	Ball
Mechatronics Bearing Group G4015E12B1-RSR	15 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	3 Wire Leads	CE cUL TUV UL	Tubeaxial	35 dB	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)	107.1 Pa	0.43 in H2O	270 mA			40 mm	Square	40 mm	12 VDC	10000 RPM	Ball
Mechatronics Bearing Group G4015E12B-RSR	15 mm	Thermal Overload Protector (TOP)	2 Wire Leads	CE cUL TUV UL	Tubeaxial	35 dB	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)	107.1 Pa	0.43 in H2O	270 mA	0.28 mł/min	10 CFM	40 mm	Square	40 mm	12 VDC	10000 RPM	Ball
Mechatronics Bearing Group G4015L05B2-RSR	15 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)	3 Wire Leads	CE cUL TUV UL	Tubeaxial	20 dB	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)	17.4 Pa	0.07 in H2O	0.2 A	0.112 m³/min	4 CFM	40 mm	Square	40 mm	5 V	4000 RPM	Ball
Mechatronics Bearing Group G4015E24B-RSR	15 mm	Thermal Overload Protector (TOP)	2 Wire Leads	CE cUL TUV UL	Tubeaxial	35 dB	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)	107.1 Pa	0.43 in H2O	110 mA			40 mm	Square	40 mm	24 VDC	10000 RPM	Ball
Mechatronics Bearing Group G4015M24B-RSR	15 mm	Thermal Overload Protector (TOP)	2 Wire Leads	CE cUL TUV UL	Tubeaxial	23 dB(A)	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)			70 mA	0.168 m³/min	6 CFM	40 mm	Square	40 mm	24 VDC	6000 RPM	Ball
Mechatronics Bearing Group G4015X24B-RSR	15 mm	Thermal Overload Protector (TOP)	2 Wire Leads	CE cUL TUV UL	Tubeaxial	39 dB(A)	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)	149.5 Pa	0.6 in H2O		0.336 mł/min	12 CFM	40 mm	Square	40 mm	24 VDC	12000 RPM	Ball
Mechatronics Bearing Group G4015H24B-RSR	15 mm	Thermal Overload Protector (TOP)	2 Wire Leads	CE cUL TUV UL	Tubeaxial	29 dB(A)	23.13 g	0.051 lb	Polybutylene Terephthalate (PBT)	72.2 Pa	0.29 in H2O	0.09 A	0.224 mł/min	8 CFM	40 mm	Square	40 mm	24 VDC	8000 RPM	Ball

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.50
		10	$ 10.98
		25	$ 10.32
		50	$ 9.93
		100	$ 9.15
		300	$ 8.56
		500	$ 8.43

Description

General part information

G4015 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 12.0 CFM (0.336m³/min) 2 Wire Leads
