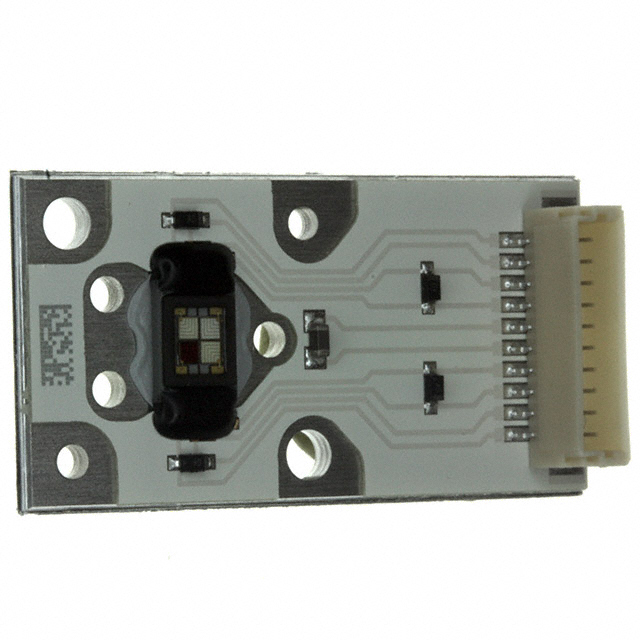

LED MOD OSTAR AMB/BLU/GRN RECT

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED MOD OSTAR AMB/BLU/GRN RECT

Technical Specifications

Parameters and characteristics for this part

Specification	LE ATB A2A

Color	Green, Amber, Blue
Configuration	Rectangle
Current - Max [custom]	700 mA
Current - Max [custom]	700 mA
Current - Max [custom]	750 mA
Current - Test	1 A
Features	With Connector
Height [z]	6.05 mm
Lens Type	Flat
Light Emitting Surface (LES) [x]	2.03 mm
Light Emitting Surface (LES) [y]	4.2 mm
Lumens/Watt @ Current - Test	25 lm/W, 6 lm /W, 49 lm/W
Luminous Flux @ Current/Temperature	11 lm, 86 lm, 55 lm
Size / Dimension [x]	29.5 mm
Size / Dimension [y]	15 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.9 V, 3.5 V, 3.5 V
Wavelength	617nm Amber, 464nm Blue, 525nm Green

Part	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Color	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Viewing Angle	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Wavelength	Height [z]	Lumens/Watt @ Current - Test	Lens Type	Type	Features	Configuration
ams-OSRAM USA INC. LE ATB A2A	700 mA	700 mA	750 mA	Amber Blue Green	15 mm	29.5 mm	1 A	11 lm 55 lm 86 lm	2.9 V 3.5 V 3.5 V	120 °	4.2 mm	2.03 mm	464nm Blue 525nm Green 617nm Amber	6.05 mm	6 lm /W 25 lm/W 49 lm/W	Flat	LED Module	With Connector	Rectangle
