M2185-4007-S-12
ActiveRAF Electronic Hardware
8MM HEX X 10MM X M4 THD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsM2180-M2209 Cut Sheet
M2185-4007-S-12
ActiveRAF Electronic Hardware
8MM HEX X 10MM X M4 THD
Deep-Dive with AI
DocumentsM2180-M2209 Cut Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2185-4007-S-12 |
|---|---|
| Between Board Height | 0.394 in |
| Between Board Height | 10 mm |
| Color | Clear |
| Diameter - Outside [diameter] | 8 mm |
| Diameter - Outside [diameter] | 0.315 in |
| Gender | Male, Female |
| Length - Overall [x] | 19.53 mm |
| Length - Overall [x] | 0.769 in |
| Plating | Zinc, Chromate |
| Screw, Thread Size | M4x0.7 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.39 | |
| 5 | $ 1.16 | |||
| 10 | $ 1.04 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.84 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.70 | |||
Description
General part information
M2185 Series

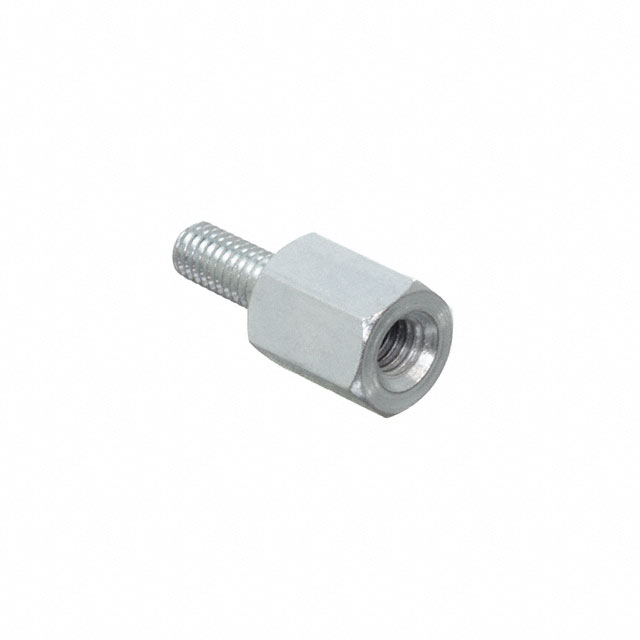

Hex Standoff Threaded M4x0.7 Steel 0.394" (10.00mm) Clear
Documents
Technical documentation and resources
