EB_FR01-S4-250-CPW1R-1700

Obsolete

Ignion

EB_CUBE MXTEND 1P 1700 MHZ CPW

Search across all available documentation for this part.

Obsolete

Ignion

EB_CUBE MXTEND 1P 1700 MHZ CPW

Technical Specifications

Parameters and characteristics for this part

Specification	EB_FR01-S4-250-CPW1R-1700

For Use With/Related Products	FR01-S4-250
Frequency [Max]	2.69 GHz
Frequency [Min]	1.71 GHz
Supplied Contents	Board(s)
Type	Antenna

Part	For Use With/Related Products	Supplied Contents	Type	Frequency [Max]	Frequency [Min]	Frequency
Ignion EB_FR01-S4-250-CPW2R	FR01-S4-250	Board(s)	Antenna	2.69 GHz 960 MHz	1.71 GHz 824 MHz
Ignion EB_FR01-S4-250-CPW1R-1700	FR01-S4-250	Board(s)	Antenna	2.69 GHz	1.71 GHz
Ignion EB_FR01-S4-250-UFL1R-1700	FR01-S4-250	Board(s)	Antenna	2.69 GHz	1.71 GHz
Ignion EB_NN02-224-CR80-2400	FR01-S4-224	Board(s)	Antenna	2.5 GHz	2.4 GHz
Ignion EB_FR01-S4-224-CR80-915	FR01-S4-224	Board(s)	Antenna			915 MHz
Ignion EB_FR01-S4-224-2,4-5	FR01-S4-224	Board(s)	Antenna	2.5 GHz 5.875 GHz	2.4 GHz 4.9 GHz
Ignion EB_FR01-S4-224-UFL3R-2P	FR01-S4-224	Board(s)	Antenna	2.69 GHz 3.8 GHz 960 MHz	1.71 GHz 3.4 GHz 698 MHz
Ignion EB_FR01-S4-224-2400	FR01-S4-224	Board(s)	Antenna	2.5 GHz	2.4 GHz
Ignion EB_FR01-S4-250-UFL1R-850	FR01-S4-250	Board(s)	Antenna	960 MHz	824 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

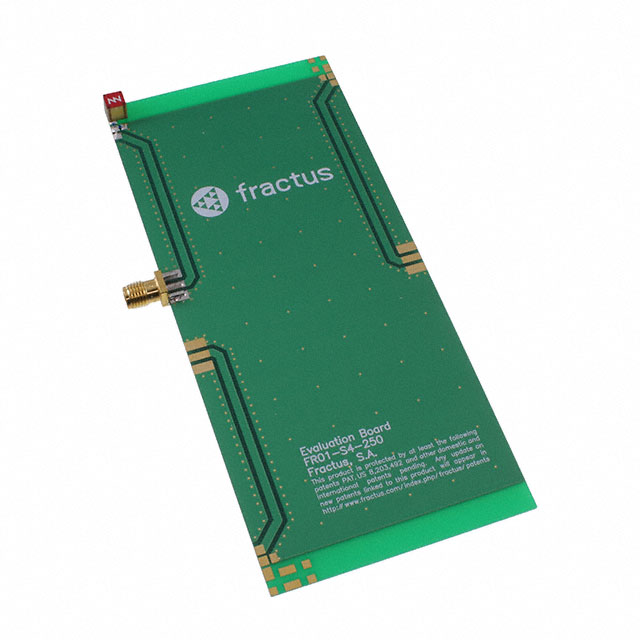

FR01-S4-250 CUBE mXTEND™ Antenna 1.71GHz ~ 2.69GHz Evaluation Board

Technical documentation and resources

No documents available
