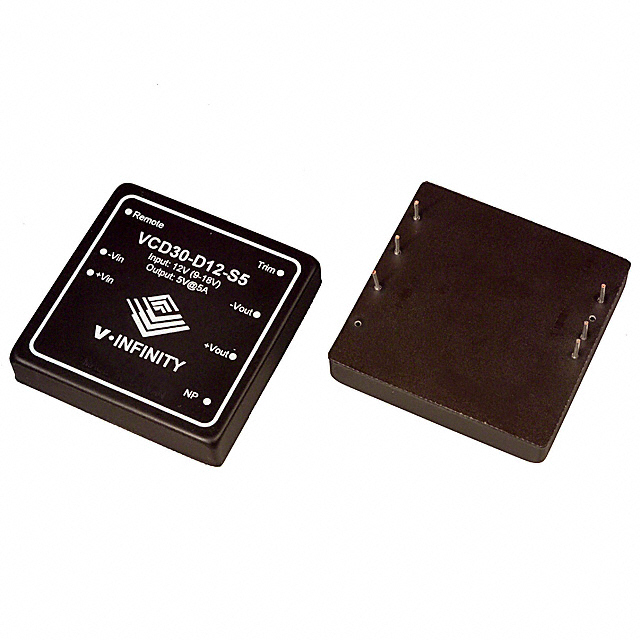

VCD30-D12-S5
CUI Inc.
DC DC CONVERTER 5V 30W
Deep-Dive with AI
Search across all available documentation for this part.
VCD30-D12-S5
CUI Inc.
DC DC CONVERTER 5V 30W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VCD30-D12-S5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 78 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 8-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Standard Number | 60950-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 150 | $ 53.24 | |
Description
General part information
VCD30 Series
Isolated Module DC DC Converter 1 Output 5V 5A 9V - 18V Input
