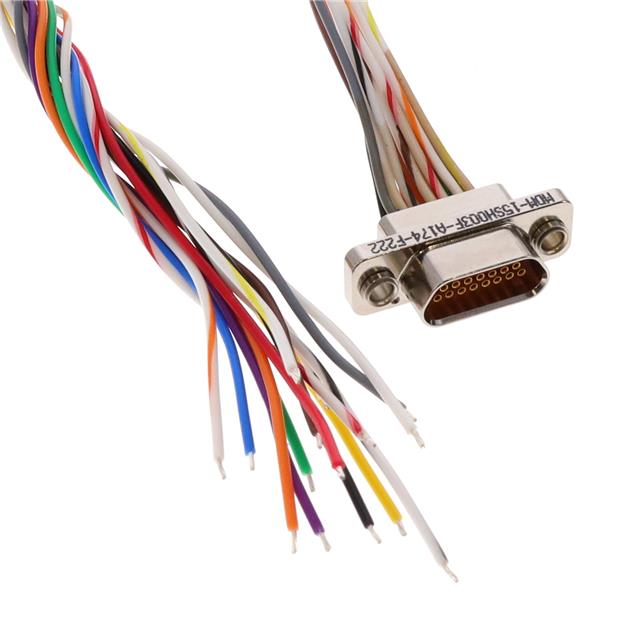

MDM-15SH003F-A174-F222

Active

ITT Cannon, LLC

CABLE ASSY D-MIC-D 15P 457.2MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CABLE ASSY D-MIC-D 15P 457.2MM

Technical Specifications

Parameters and characteristics for this part

...

Part	Contact Finish	Length [x]	Length [x]	1st Connector	2nd Connector	Type	Color	Shielding	Number of Positions	Length	Length
ITT Cannon, LLC MDM-15SHW11B	Gold	3 ft	914.4 mm	Female Sockets Receptacle	Individual Wire Leads	D-Type Micro-D	Individual Multiple	Unshielded	15
ITT Cannon, LLC MDM-15SH003L	Gold	1.5 ft	457.2 mm	Female Sockets Plug	Individual Wire Leads	D-Type Micro-D	Individual Multiple		15
ITT Cannon, LLC MDM-15SH004K	Gold	2 '	609.6 mm	Female Sockets Plug	Individual Wire Leads	D-Type Micro-D	Individual Multiple		15
ITT Cannon, LLC MDM-15SH006B-F222	Gold	3 ft	914.4 mm	Female Sockets Receptacle	Individual Wire Leads	D-Type Micro-D	Individual Multiple		15
ITT Cannon, LLC MDM-15SH041L	Gold			Female Sockets Receptacle	Individual Wire Leads	D-Type Micro-D	Individual Multiple	Unshielded	15	10 ft	3.05 m
ITT Cannon, LLC MDM-15PH001F	Gold	1.5 ft	457.2 mm	Plug Male Pins	Individual Wire Leads	D-Type Micro-D	Yellow	Unshielded	15
ITT Cannon, LLC MDM-15SH003F-A174-F222	Gold	1.5 ft	457.2 mm	Female Sockets Plug	Individual Wire Leads	D-Type Micro-D	Individual Multiple	Unshielded	15
ITT Cannon, LLC MDM-15PH006F-A174-F222	Gold	3 ft	914.4 mm	Plug Male Pins	Individual Wire Leads	D-Type Micro-D	Individual Multiple	Unshielded	15
ITT Cannon, LLC MDM-15PH003K	Gold	1.5 ft	457.2 mm	Plug Male Pins	Individual Wire Leads	D-Type Micro-D	Individual Multiple		15
ITT Cannon, LLC MDM-15SH003B-F222	Gold	1.5 ft	457.2 mm	Female Sockets Plug	Individual Wire Leads	D-Type Micro-D	Individual Multiple		15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 225.45

General part information

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Plug, Female Sockets to Individual Wire Leads Unshielded

Technical documentation and resources
