3906L

Obsolete

ebm-papst Inc.

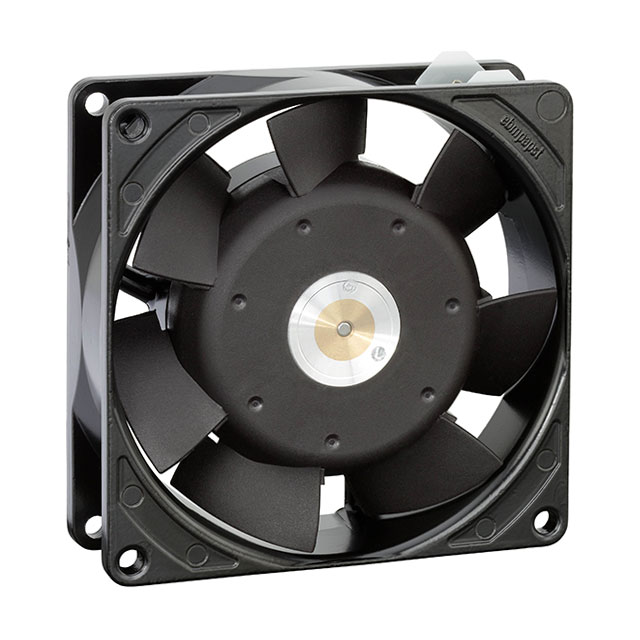

FAN AXIAL 92X25MM 115VAC TERM

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

FAN AXIAL 92X25MM 115VAC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	3906L

Air Flow	0.644 m³/min
Air Flow	23 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Nylon, Mineral Reinforced, Polyamide (PA)
Material - Frame	Metal
Noise	27 dB(A)
Operating Temperature [Max]	80 °C
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	5 W
RPM	1850 RPM
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	0.617 lb
Weight	279.87 g
Width [y]	25 mm

Part	Width [y]	Noise	Air Flow	Air Flow	Power (Watts)	Fan Type	Material - Frame	Bearing Type	Weight	Weight	RPM	Approval Agency	Lifetime @ Temp.	Voltage - Rated	Material - Blade	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]
ebm-papst Inc. 3906L	25 mm	27 dB(A)	0.644 m³/min	23 CFM	5 W	Tubeaxial	Metal	Ball	0.617 lb	279.87 g	1850 RPM	CE CSA UL VDE	70000 Hrs	115 VAC	Mineral Reinforced Nylon Polyamide (PA)	2 Terminals	80 °C	-40 °C	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 115VAC Square - 92mm L x 92mm H Ball 23.0 CFM (0.644m³/min) 2 Terminals
