Q-3802J000H1.5M
ActiveAmphenol Custom Cable

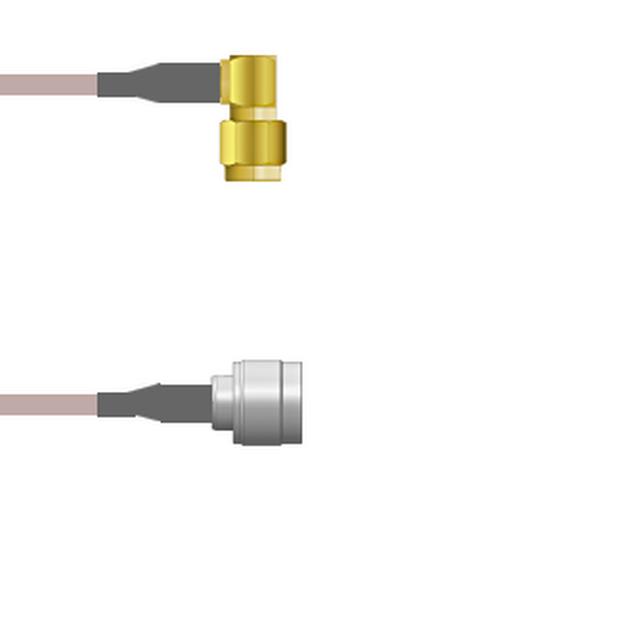

COAX CBL SMA TO N-TYPE 4.9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-3802J000H1.5M
ActiveAmphenol Custom Cable
COAX CBL SMA TO N-TYPE 4.9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3802J000H1.5M |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-142 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 59.1 in |
| Length | 4.9 ft |
| Length | 1.5 m |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 201.60 | |
| 25 | $ 197.66 | |||
| 50 | $ 193.72 | |||
| 100 | $ 189.78 | |||
| 250 | $ 185.84 | |||
Description
General part information
Q-3802J0 Series
Cable Assembly Coaxial SMA to N-Type RG-142 59.1" (1.5m) 4.9'
Documents
Technical documentation and resources
No documents available
