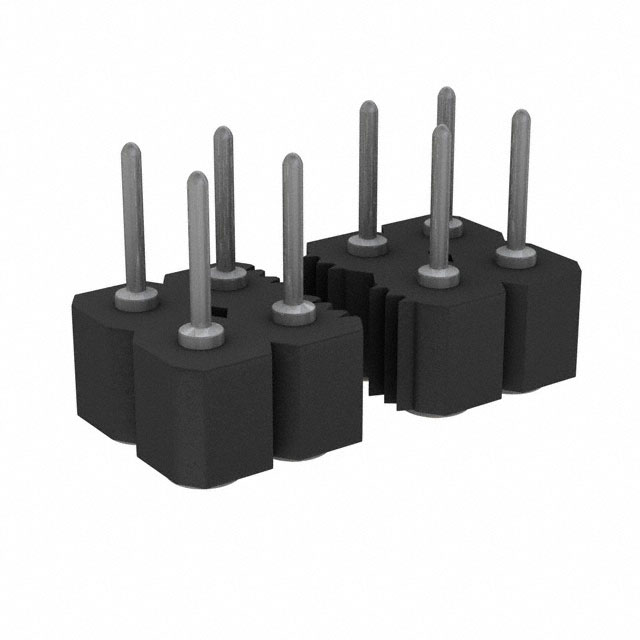

802-80-052-30-480101

Active

PRECI-DIP SA

CONN HEADER SMD 52POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

802-80-052-30-480101

Active

PRECI-DIP SA

CONN HEADER SMD 52POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	802-80-052-30-480101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	52
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

802-80 Series

...

Part	Shrouding	Number of Positions	Contact Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Material Flammability Rating	Insulation Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post [x]	Insulation Color	Contact Material	Contact Finish - Post	Number of Positions Loaded	Number of Rows	Contact Length - Mating	Contact Length - Mating	Termination	Fastening Type	Current Rating (Amps)	Contact Shape	Contact Length - Mating	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]
PRECI-DIP SA 802-80-014-20-001101	Unshrouded	14	Male Pin	Through Hole Right Angle	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm	3.2 mm	0.126 in	Black	Brass	Tin	All	2	0.195 "	4.95 mm	Solder	Push-Pull	3 A	Circular
PRECI-DIP SA 802-80-024-30-001101	Unshrouded	24	Male Pin	Surface Mount	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm			Black	Brass	Tin	All	2		0.191 in	Solder	Push-Pull	3 A	Circular	4.85 mm
PRECI-DIP SA 802-80-008-10-001101	Unshrouded	8	Male Pin	Through Hole	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm	3.08 mm		Black	Brass	Tin	All	2		0.191 in	Solder	Push-Pull	3 A	Circular	4.85 mm	0.121 in	11.12 mm	0.438 in
PRECI-DIP SA 802-80-032-66-001101	Unshrouded		Male Pin	Through Hole	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm		0.15 in	Black	Bronze	Tin	All	2		0.191 in	Press-Fit Solder	Push-Pull	3 A	Circular	4.85 mm		11.85 mm	0.467 in	3.81 mm
PRECI-DIP SA 802-80-062-66-001101	Unshrouded	62	Male Pin	Through Hole	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm		0.15 in	Black	Bronze	Tin	All	2		0.191 in	Press-Fit Solder	Push-Pull	3 A	Circular	4.85 mm		11.85 mm	0.467 in	3.81 mm
PRECI-DIP SA 802-80-068-10-001101	Unshrouded	68	Male Pin	Through Hole	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm	3.08 mm		Black	Brass	Tin	All	2		0.191 in	Solder	Push-Pull	3 A	Circular	4.85 mm	0.121 in	11.12 mm	0.438 in
PRECI-DIP SA 802-80-032-10-001101	Unshrouded		Male Pin	Through Hole	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm	3.08 mm		Black	Brass	Tin	All	2		0.191 in	Solder	Push-Pull	3 A	Circular	4.85 mm	0.121 in	11.12 mm	0.438 in
PRECI-DIP SA 802-80-028-65-001101	Unshrouded	28	Male Pin	Through Hole	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm	2.79 mm	0.11 in	Black	Bronze	Tin	All	2		0.191 in	Press-Fit Solder	Push-Pull	3 A	Circular	4.85 mm		10.85 mm	0.427 "
PRECI-DIP SA 802-80-054-66-001101	Unshrouded	54	Male Pin	Through Hole	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm		0.15 in	Black	Bronze	Tin	All	2		0.191 in	Press-Fit Solder	Push-Pull	3 A	Circular	4.85 mm		11.85 mm	0.467 in	3.81 mm
PRECI-DIP SA 802-80-052-30-480101	Unshrouded	52	Male Pin	Surface Mount	2.54 mm	0.1 in	Header	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	-55 °C	125 °C	0.1 in	2.54 mm			Black	Brass	Tin	All	2	0.141 in	3.6 mm	Solder	Push-Pull	3 A	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	160	$ 5.02

Description

General part information

802-80 Series

Connector Header Surface Mount 52 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
