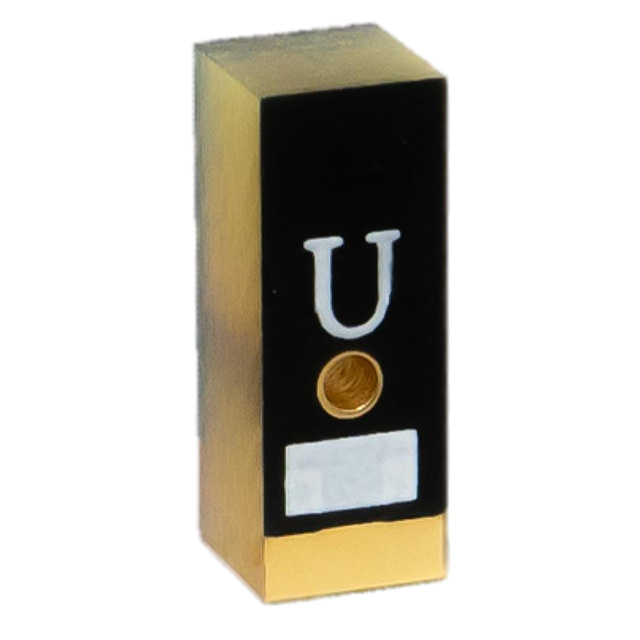

H2UM6D1K2T0100
ActiveUnictron Technologies Corporation
UNICTRON CE807 - WI-FI 6E BAND ,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2UM6D1K2T0100
ActiveUnictron Technologies Corporation
UNICTRON CE807 - WI-FI 6E BAND ,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2UM6D1K2T0100 |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi |
| Frequency (Center/Band) | 6.525 GHz |
| Frequency Group | SHF |
| Frequency Range [Max] | 7.125 GHz |
| Frequency Range [Min] | 5.925 GHz |
| Gain | 3.5 dBi |
| Height (Max) [Max] | 8 mm |
| Height (Max) [Max] [z] | 0.315 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | WiFi |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.64 | |
| 10 | $ 1.47 | |||
| 25 | $ 1.39 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.11 | |||
| Digi-Reel® | 1 | $ 1.64 | ||
| 10 | $ 1.47 | |||
| 25 | $ 1.39 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.11 | |||
| Tape & Reel (TR) | 500 | $ 0.97 | ||
| 1000 | $ 0.81 | |||
| 2500 | $ 0.75 | |||
| 5000 | $ 0.72 | |||
| 12500 | $ 0.69 | |||
Description
General part information
H2UM6D1 Series
RF ANTENNA Wi-Fi Chip Solder Surface Mount
Documents
Technical documentation and resources
