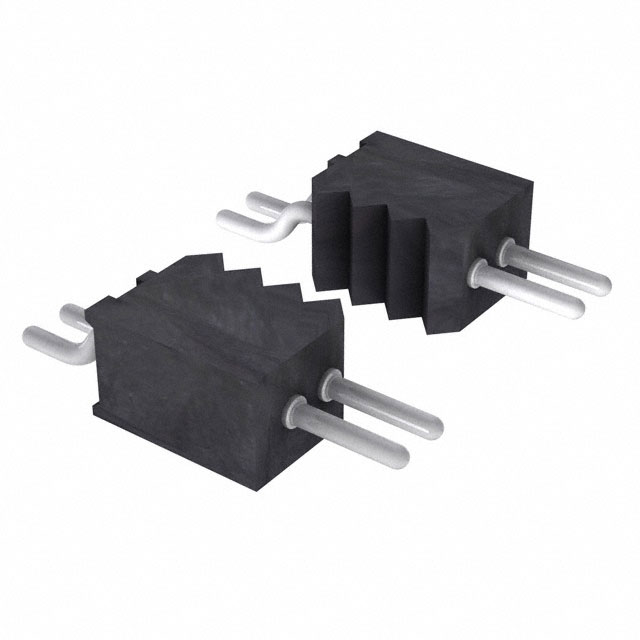

860-80-012-40-001101

Active

PRECI-DIP SA

CONN HEADER SMD R/A 12POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

860-80-012-40-001101

Active

PRECI-DIP SA

CONN HEADER SMD R/A 12POS 1MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	860-80-012-40-001101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [x]	0.086 in
Contact Length - Mating [x]	2.2 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

860-80 Series

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Pitch - Mating	Pitch - Mating	Shrouding	Contact Shape	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Voltage Rating	Number of Positions	Termination	Number of Rows	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Material	Mounting Type	Contact Material	Fastening Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Color	Contact Length - Post	Contact Length - Post
PRECI-DIP SA 860-80-004-10-001101	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin	0.241 in	6.13 mm	150 VDC	4	Solder	1	0.047 in	1.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black	2.5 mm	0.098 in
PRECI-DIP SA 860-80-017-10-001101	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin	0.241 in	6.13 mm	150 VDC		Solder	1	0.047 in	1.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black	2.5 mm	0.098 in
PRECI-DIP SA 860-80-025-40-001101	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin			150 VDC		Solder	1	0.087 "	2.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Surface Mount Right Angle	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black
PRECI-DIP SA 860-80-022-10-001101	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin	0.241 in	6.13 mm	150 VDC	22 positions	Solder	1	0.047 in	1.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black	2.5 mm	0.098 in
PRECI-DIP SA 860-80-014-40-001191	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin			150 VDC	14	Solder	1	0.087 "	2.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Surface Mount Right Angle	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black
PRECI-DIP SA 860-80-012-40-001101	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin			150 VDC	12	Solder	1	0.087 "	2.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Surface Mount Right Angle	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black
PRECI-DIP SA 860-80-029-10-001101	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin	0.241 in	6.13 mm	150 VDC	29	Solder	1	0.047 in	1.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black	2.5 mm	0.098 in
PRECI-DIP SA 860-80-006-10-001101	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin	0.241 in	6.13 mm	150 VDC	6	Solder	1	0.047 in	1.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black	2.5 mm	0.098 in
PRECI-DIP SA 860-80-028-10-001101	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin	0.241 in	6.13 mm	150 VDC	28	Solder	1	0.047 in	1.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black	2.5 mm	0.098 in
PRECI-DIP SA 860-80-003-40-001191	0.086 in	2.2 mm	Header	0.039 in	1 mm	Unshrouded	Circular	Tin			150 VDC		Solder	1	0.087 "	2.2 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Surface Mount Right Angle	Brass	Push-Pull	UL94 V-0	-55 °C	125 °C	Male Pin	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 2.01

Description

General part information

860-80 Series

Connector Header Surface Mount, Right Angle 12 position 0.039" (1.00mm)

Documents

Technical documentation and resources

No documents available
