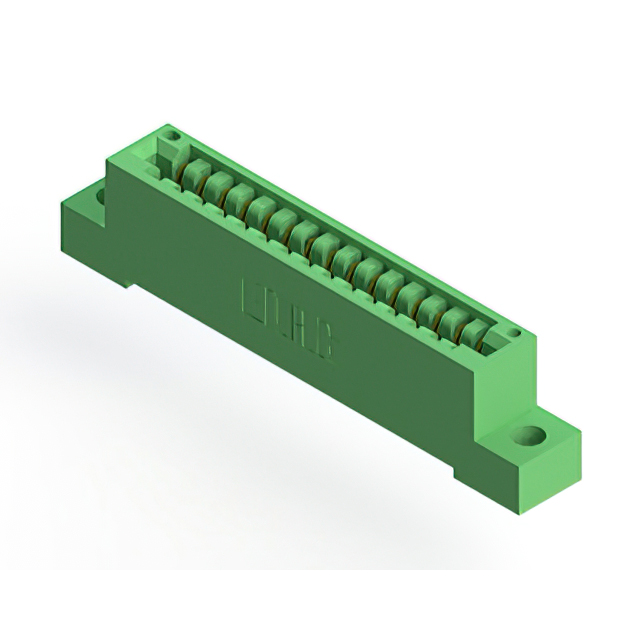

846-015-521-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-015-521-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-015-521-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
846-015 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Gender | Card Type | Read Out | Pitch [x] | Pitch [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Number of Rows | Material - Insulation | Termination | Mounting Type | Number of Positions | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Solder | Through Hole Right Angle | 15 | ||
EDAC Inc. | Side Mount Opening Unthreaded | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Solder | Through Hole | 15 | 3.25 mm | 0.128 in | ||
EDAC Inc. | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Solder | Through Hole | 15 | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Solder | Through Hole Right Angle | 15 | ||||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Solder | Through Hole Right Angle | 15 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Solder | Through Hole | 15 | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Solder Eyelet(s) | Through Hole | 15 | ||||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Wire Wrap | Through Hole | 15 | ||||
EDAC Inc. | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Solder | Through Hole | 15 | ||
EDAC Inc. | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Female | Non Specified - Single Edge | Single | 0.125 in | 3.18 mm | Copper Alloy | 10 Áin | 0.25 Ám | Green | Cantilever | 125 °C | -40 °C | 1 | 1 | Diallyl Phthalate (DAP) | Wire Wrap | Through Hole | 15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 39.30 | |
Description
General part information
846-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
