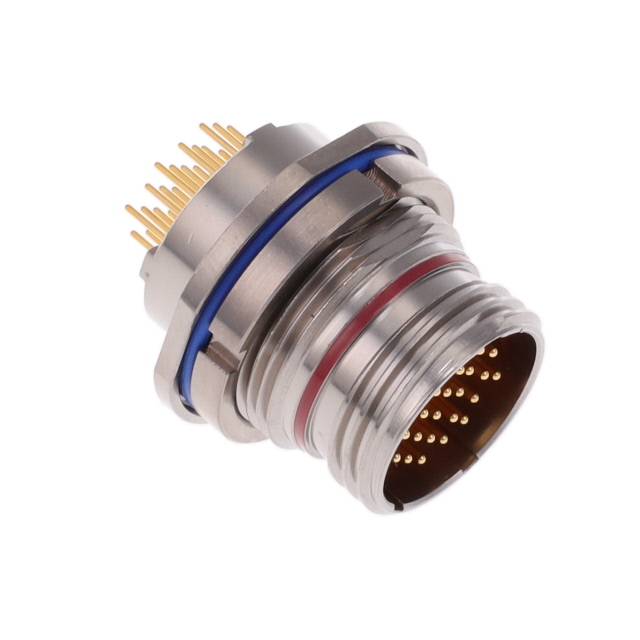

2M801-038-07MT10-26PA

Active

Amphenol Aerospace Operations

CONN RCPT MALE 26POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 26POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Primary Material	Connector Type	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shell Finish	Contact Material	Number of Positions	Orientation	Mounting Feature	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Termination	Mounting Type	Shielding	Contact Finish - Mating	Color
Amphenol Aerospace Operations 2M801-038-07MT10-26PA	Metal	Male Pins Receptacle	Aluminum	-65 ░C	150 °C	Polyphenylene Sulfide (PPS)	Durmalon™	Copper Alloy	26	A	Bulkhead - Front Side Nut	5 A	26	10	Solder	Panel Mount Through Hole	Shielded	Gold
Amphenol Aerospace Operations 2M801-038-07MT10-26SA	Metal	Receptacle Female Sockets	Aluminum	-65 ░C	150 °C	Polyphenylene Sulfide (PPS)	Durmalon™	Copper Alloy	26	A	Bulkhead - Front Side Nut	5 A	26	10	Solder	Panel Mount Through Hole	Shielded	Gold
Amphenol Aerospace Operations 2M801-038-07M7-10SA	Metal	Receptacle Female Sockets	Aluminum	-65 ░C	150 °C	Polyphenylene Sulfide (PPS)	Electroless Nickel	Copper Alloy	10	A	Bulkhead - Front Side Nut	5 A			Solder	Panel Mount Through Hole	Shielded	Gold	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Circular Connector Receptacle, Male Pins Solder
