BJ3159AC-201

Active

Cinch Connectivity Solutions Trompeter

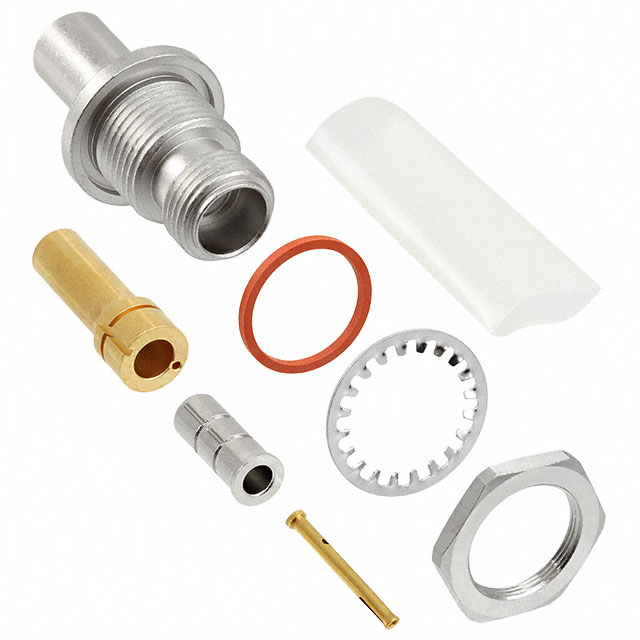

CONN TTM JACK STR CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TTM JACK STR CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	BJ3159AC-201

Body Finish	Nickel
Body Material	Brass
Cable Group	M17/176-00002
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TTM, Twinaxial/Triaxial
Connector Type	Female Socket (Concentric), Jack
Contact Termination	Crimp
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Heat Shrink, 1 Nut, 1 Connector, 1 Washer
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Impedance	Mounting Feature	Body Material	Includes	Shield Termination	Center Contact Plating	Body Finish	Contact Termination	Frequency - Max [Max]	Housing Color	Cable Group	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Connector Style	Connector Type	Number of Ports
Cinch Connectivity Solutions Trompeter BJ3159AC-201	Non-Constant	Bulkhead - Front Side Nut	Brass	1 Connector 1 Heat Shrink 1 Nut 1 Washer	Crimp	Gold	Nickel	Crimp	500 MHz	Silver	M17/176-00002	500	-65 ░C	200 °C	Beryllium Copper	TTM Twinaxial/Triaxial	Female Socket (Concentric) Jack	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TTM, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Crimp
