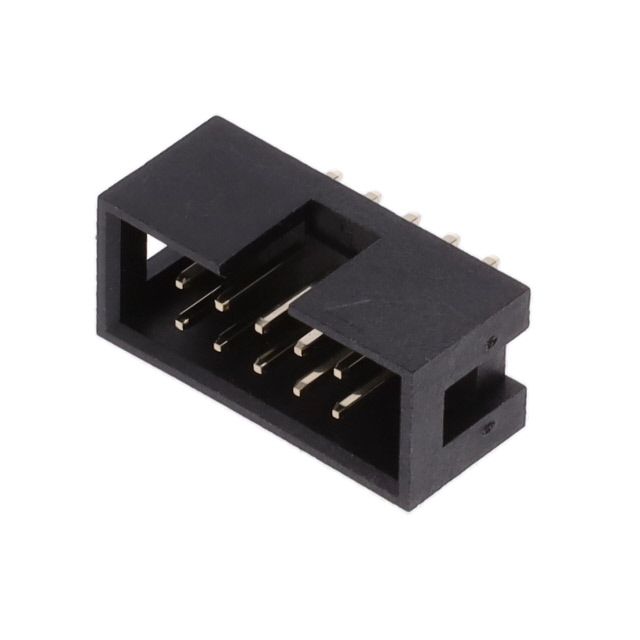

G821EU210AGM00Y

Active

Amphenol ICC (Commercial Products)

BOX HEADER 2.54MM*2.54MM PITCH S

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

BOX HEADER 2.54MM*2.54MM PITCH S

Technical Specifications

Parameters and characteristics for this part

Specification	G821EU210AGM00Y

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.358 in
Insulation Height	9.1 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Positions Loaded	Contact Type	Contact Shape	Termination	Number of Rows	Features	Connector Type	Insulation Color	Number of Positions	Contact Finish Thickness - Post	Contact Material	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post [x]	Style	Contact Finish - Mating	Shrouding
Amphenol ICC (Commercial Products) G821EU210AGM00Y	All	Male Pin	Square	Solder	2	Keying Slot	Header	Black	10	Flash	Brass	Through Hole	Gold	0.358 in	9.1 mm	Push-Pull	3 A	UL94 V-0	Flash	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	2.54 mm	0.1 in	-25 °C	85 °C	3.2 mm	0.126 in	Board to Cable/Wire	Gold	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 10 position 0.100" (2.54mm)
