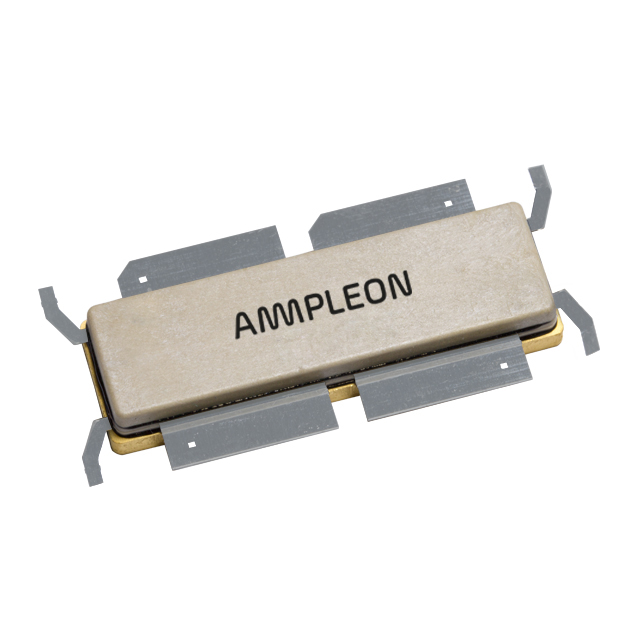

BLC8G27LS-210PVZ

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V 8DFM

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V 8DFM

Technical Specifications

Parameters and characteristics for this part

Part	Power - Output	Gain	Mounting Type	Voltage - Test	Current - Test	Frequency [Min]	Frequency [Max]	Voltage - Rated	Supplier Device Package	Package / Case	Configuration	Current Rating (Amps)
Ampleon USA Inc. BLC8G22LS-450AVZ	85 W	14 dBi	Chassis Mount	28 V	1 A	2.11 GHz	2.17 GHz	65 V	DFM6	SOT-1258-3	Common Source Dual
Ampleon USA Inc. BLC8G27LS-210PVZ	65 W	17 dBi	Chassis Mount	28 V	1.73 A	2.6 GHz	2.7 GHz	65 V	8-DFM	SOT-1251-3	Common Source Dual
Ampleon USA Inc. BLC8G22LS-450AVY	85 W	14 dBi	Chassis Mount	28 V	1 A	2.11 GHz	2.17 GHz	65 V	DFM6	SOT-1258-3	Common Source Dual
Ampleon USA Inc. BLC8G27LS-100AVZ	17.8 W	15.5 dBi	Chassis Mount	28 V	250 mA	2.5 GHz	2.69 GHz	65 V	DFM6	SOT-1275-1	Common Source Dual
Ampleon USA Inc. BLC8G24LS-241AVY	56 W	14.5 dBi	Chassis Mount	28 V				65 V	DFM8	SOT-1252-1	Common Source Dual
Ampleon USA Inc. BLC8G27LS-140AVY	28 W	14.5 dBi	Chassis Mount	28 V	320 mA	2.5 GHz	2.69 GHz	65 V	DFM6	SOT-1275-1	Common Source Dual
Ampleon USA Inc. BLC8G09XS-400AVTY	540 W	17 dBi		32 V	880 mA	791 MHz	960 MHz	65 V	SOT-1258-7	SOT-1258-7		2.8 µA
Ampleon USA Inc. BLC8G27LS-240AVJ	56 W	14 dBi	Chassis Mount	28 V		2.5 GHz	2.69 GHz	65 V	DFM8	SOT-1252-1	Common Source Dual
Ampleon USA Inc. BLC8G27LS-60AVZ			Chassis Mount						SOT-1275-3	SOT-1275-3
Ampleon USA Inc. BLC8G27LS-210PVY	65 W	17 dBi	Chassis Mount	28 V	1.73 A	2.6 GHz	2.7 GHz	65 V	8-DFM	SOT-1251-3	Common Source Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 1.73 A 2.6GHz ~ 2.7GHz 17dB 65W 8-DFM
