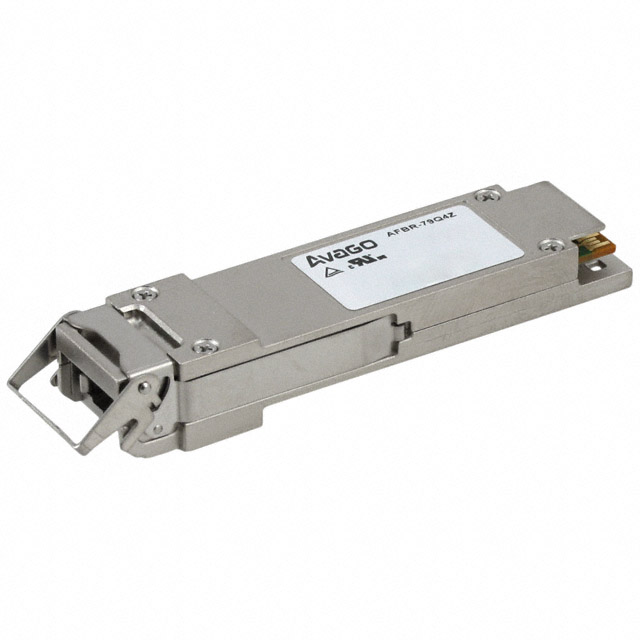

AFBR-79Q4Z

Obsolete

Broadcom Limited

TXRX QSFP 10G 4CH PLUGGABLE

Search across all available documentation for this part.

Obsolete

Broadcom Limited

TXRX QSFP 10G 4CH PLUGGABLE

Technical Specifications

Parameters and characteristics for this part

Part	Data Rate	Connector Type	Wavelength	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type
Broadcom Limited AFBR-79EQPZ-CS2
Broadcom Limited AFBR-79Q4Z	10 Gbps	MTP® (MPO)	850 nm	General Purpose
Broadcom Limited AFBR-79EIPZ-HP5	40 Gbps	MTP® (MPO)	850 nm	Telecom/Datacom Systems	3.465 V	3.135 V	Pluggable QSFP+
Broadcom Limited AFBR-79EBMZ-DC5
Broadcom Limited AFBR-79EQPZ-FB1	10.3125 GBd	MTP® (MPO)	850 nm	Telecom/Datacom Systems	3.465 V	3.135 V	Pluggable QSFP+
Broadcom Limited AFBR-79EBMZ	40 Gbps	LC Duplex	900 nm	Ethernet			Pluggable QSFP+
Broadcom Limited AFBR-79EQPZ-CS3	10.3125 GBd	MTP® (MPO)	850 nm	Telecom/Datacom Systems	3.465 V	3.135 V	Pluggable QSFP+
Broadcom Limited AFBR-79EBRZ-DC5	10.3125 GBd	LC Duplex	850 nm 900 nm	Ethernet			Pluggable QSFP+

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Transceiver Module General Purpose 10Gbps 850nm MTP® (MPO) Panel Mount

Technical documentation and resources
